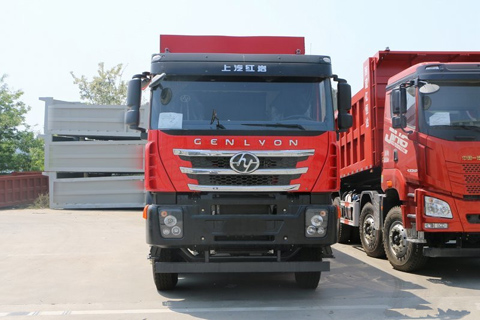

Hongyan Genlyon C6 380hp 8X4 8.2m Dumper(CQ3317HK12386)

Model: CQ3317HK12386
Overall Dimension: 10885mmX2550mmX3460mm
Payload Weight: 15370kg
Gross Weight: 31000(Kg)
Driving Type:  8X4
Wheelbase: 2000+3800+1400mm
Engine Model: X12NS6B380
Cylinder Number: 6
Engine Displacement: 11.8L
Engine Max Power: 279kW
Engine Max Torque: 2000N·m/1000-1300rpm
Emission Standard: National Ⅵ
Transmission Model: 12JSD200TA-B
Tank Volume: 400L
Rear Axle: HY300H   18000kg(Payload)
Tire: 11.00R20; Number of Tire: 11.00R20
Approaching/Departure Angle: 16/11
Cargo Box Dimension: 8200mmX2350mmX1500mm
Number of Spring Leaf: 3/3/6,8/8/12,9/9/12,10/10/12
