Dongfeng Tianjin Fire-extinguishing Water Tanker (6t)

Basic Information
Usage	Fire Extinguishing Truck

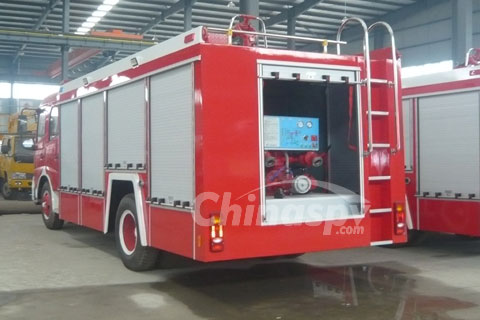

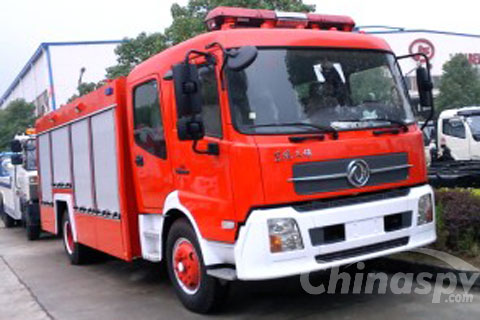

Dongfeng Tianjin fire-extinguishing water tanker is equipped with Dongfeng refit chassis DFL1160BX2 and of compact structure and good power. Upload framework of upload cargo is aluminium alloy extrusions manufacturered by European technology, which makes it light weight but high speed. Apart from fire-extinguishing pumps and equipments, it owns water tanker and water mointer for firemen extinguishing fire or taking use of water source directly.

Technical Parameters

Model	JDF5150GXFSG60T
Dimension (mm)	8120×2480×3350
Total mass (kg)	15,000
Rated weight (kg)	6,000
Curb weight (kg)	8,550
Tanker capacity (kg)	water 6,000; foam 4.000
Engine (diesel)	B190 33 Dongfeng Cummins 5,900ml 140kw; EQH180-33 Dongfeng CV 4,752ml 132kw
Chassis	DFL1160BX2 Dongfeng
Wheelbase (mm)	4500,4200
Maximum speed (km/h)	90

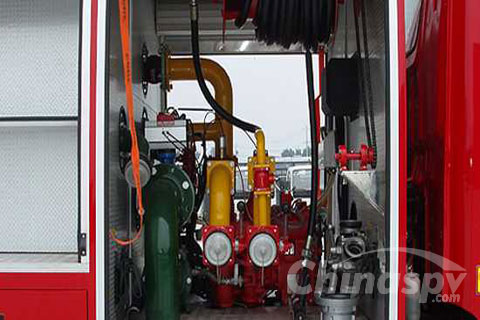

Specific function	Medium-low pressure pump: CB20.10/15.30 low pressure flow:30L/s/1.0MPa Medium pressure flow:15L/S/2.0MPa;
