| Basic Information | |||

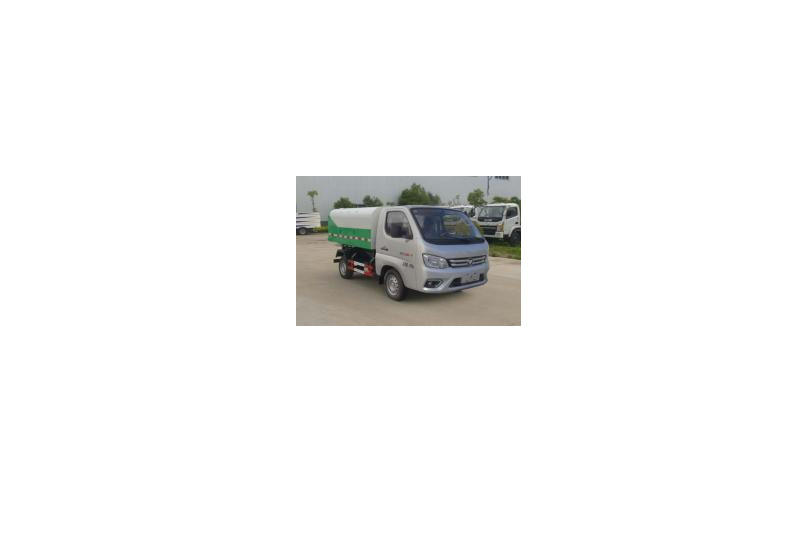

| Usage | Refuse Collector | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.6-2016 national Ⅵ emission standards | ||
| Length | 4750,4550mm | ||
| Width | 1660mm | ||
| Height | 2000mm | ||
| Curb Weight | 2075kg | ||
| Gross Weight | 2995kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | BJ1031V4JV3-01 | ||
| Front/Rear Overhang | 1075/1075mm | ||
| Number of Leaf Springs | -/5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2400,2600mm | ||
| Axle Load | 1445/1550kg | ||
| Front Wheel Track | 1320mm | ||
| Rear Wheel Track | 1410mm | ||
| Approaching/Departuring Angle | 21/25° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 175R14LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DAM15KR | Harbin Dongan Automobile Power Co., Ltd. | 85kW | 1498ml |
| DAM16KR | Harbin Dongan Automobile Power Co., Ltd. | 90kW | 1597ml |
