| Basic Information |
| Usage |

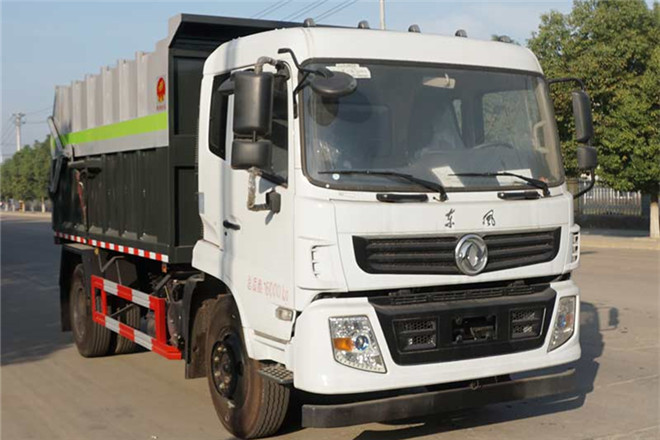

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005, GB17691-2018 national Ⅵ emission standards |
| Length |
6850,7850mm |
| Width |
2500,2550mm |
| Height |
3100mm |
| Curb Weight |
7980kg |
| Gross Weight |
16000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
EQ1160GSZ6DJ |
| Front/Rear Overhang |
1475/1425,1475/1875,1515/1385,1515/1835,1320/1580,1320/2030mm |
| Number of Leaf Springs |
8/10+8,11/11+10 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,4700,5100,3400,3650,3800mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1750,1800,1860,1910,1940mm |
| Rear Wheel Track |
1650,1700,1750,1800,1860mm |
| Approaching/Departuring Angle |
23/19,23/15° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 16PR,275/80R22.5 18PR |
| Engine |
| Model |
D4.0NS6B170,D4.0NS6B195,B6.2NS6B210,YCY30165-60,YCS04180-68,WP3NQ160E61,YCDV4261-185,WP4.6NQ220E61,WP4.1NQ190E61 |
| Power |
125,143,154,121,132,118,135,162,140kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Weichai Power Co., Ltd.; Guangxi Yuchai Machinery Co., Ltd.; Weichai Power Co., Ltd.; Weichai Power Co., Ltd. |
| Displacement |
4000,4000,6200,2970,4156,2970,4156,4580,4088ml |
