| Basic Information | |||

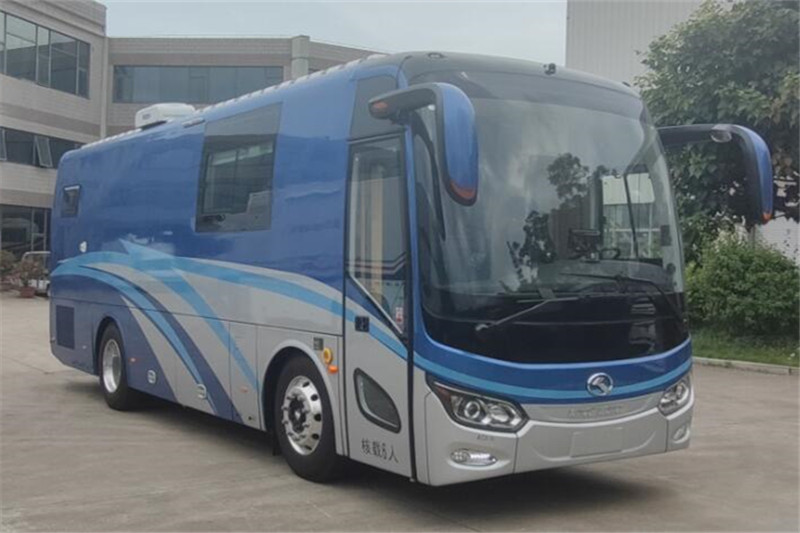

| Usage | Recreational Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 8995mm | ||
| Width | 2500mm | ||
| Height | 3315,3385,3455,3515,3580,3650mm | ||
| Curb Weight | 9895kg | ||
| Gross Weight | 13000kg | ||
| Seats | 2-9 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | XMQ6871RD6 | ||
| Front/Rear Overhang | 1905/2790mm | ||
| Number of Leaf Springs | -/-,7/10,8/11,3/4 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4300mm | ||
| Front Wheel Track | 2030,2070mm | ||
| Rear Wheel Track | 1870,1885mm | ||
| Approaching/Departuring Angle | 11/9° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10R22.5,275/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCS06270-62 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 6234;7470 ml |
| WP7.270E61A | Weichai Power Co., Ltd. | 199 kW | |
