| Basic Information | |||

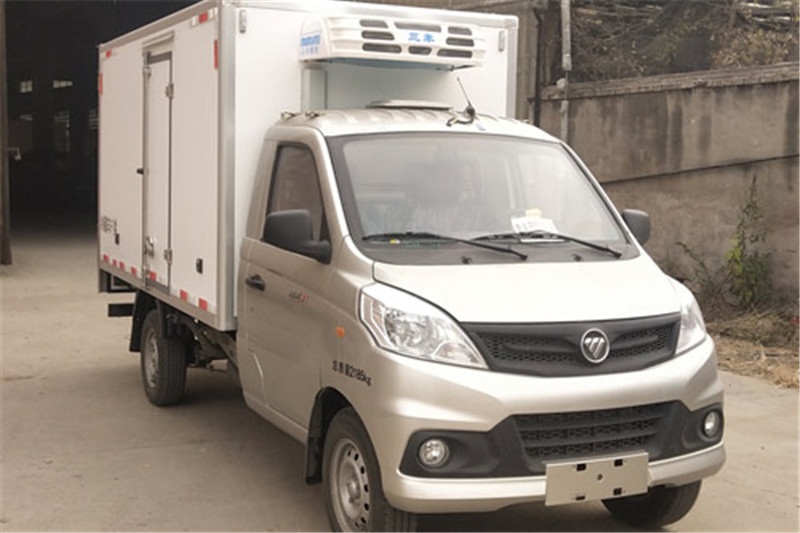

| Usage | Refrigerated Van | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.6-2016 national Ⅵ emission standards | ||
| Length | 4960,5210,4960,5210,5360mm | ||
| Width | 1720,1790mm | ||
| Height | 2385,2515,2610mm | ||
| Curb Weight | 1560kg | ||
| Gross Weight | 2185kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | BJ1020V3JV5-02 | ||
| Front/Rear Overhang | 605/1285,605/1435,605/1285,605/1435,605/1585mm | ||
| Number of Leaf Springs | -/5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3070,3170mm | ||
| Axle Load | 865/1320kg | ||
| Front Wheel Track | 1338mm | ||
| Rear Wheel Track | 1375,1455mm | ||
| Approaching/Departuring Angle | 39/23° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 175R14LT 6PR,175R14LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DAM15KR | Harbin Dongan Automobile Power Co., Ltd. | 85kW | 1498ml |
| DAM16KR | Harbin Dongan Automobile Power Co., Ltd. | 90kW | 1597ml |
