| Basic Information | |||

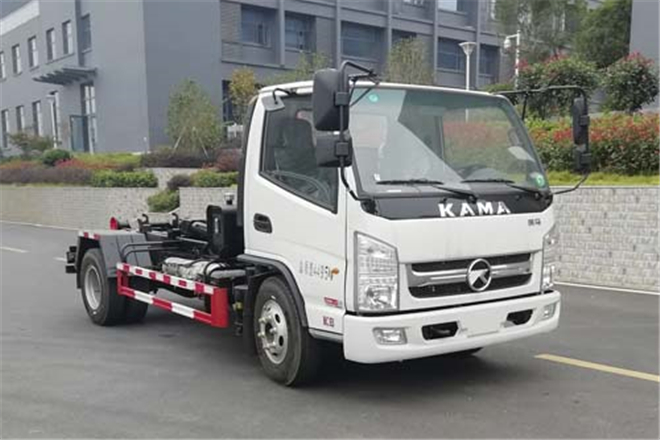

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 5770mm | ||
| Width | 2098mm | ||
| Height | 2180,2250mm | ||
| Curb Weight | 3770kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | KMC3042HK330DP6 | ||
| Front/Rear Overhang | 1125/1345mm | ||
| Number of Leaf Springs | 7/9+5,3/6+5,3/5+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 1860/2635kg | ||
| Front Wheel Track | 1685,1620,1600,1570mm | ||
| Rear Wheel Track | 1550,1600,1655,1700,1790mm | ||
| Approaching/Departuring Angle | 19/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 8PR,7.50R16LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP2.3NQ130E61 | Weichai Power Co., Ltd. | 96kW | 2289ml |
| CA4DB1-13E6 | China FAW Group Co., Ltd. | 95kW | 2207ml |
| CY4BK461 | Dongfeng Chaoyang Diesel Co., Ltd. | 95kW | 3707ml |
