| Basic Information | |||

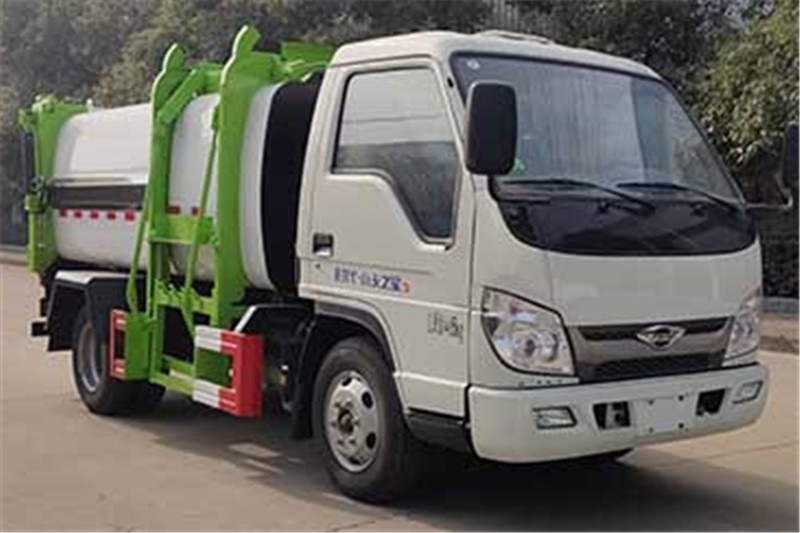

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 5850mm | ||
| Width | 2180mm | ||
| Height | 2760mm | ||
| Curb Weight | 3860kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | HFC1041P23K1C7ZS | ||
| Front/Rear Overhang | 1100/1385,1075/1410mm | ||
| Number of Leaf Springs | 11/9+7,5/5+6,7/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2850,3365mm | ||
| Axle Load | 1620/2875kg | ||
| Front Wheel Track | 1440mm | ||
| Rear Wheel Track | 1425mm | ||
| Approaching/Departuring Angle | 24/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT 10PR,7.00R16LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
