| Basic Information | |||

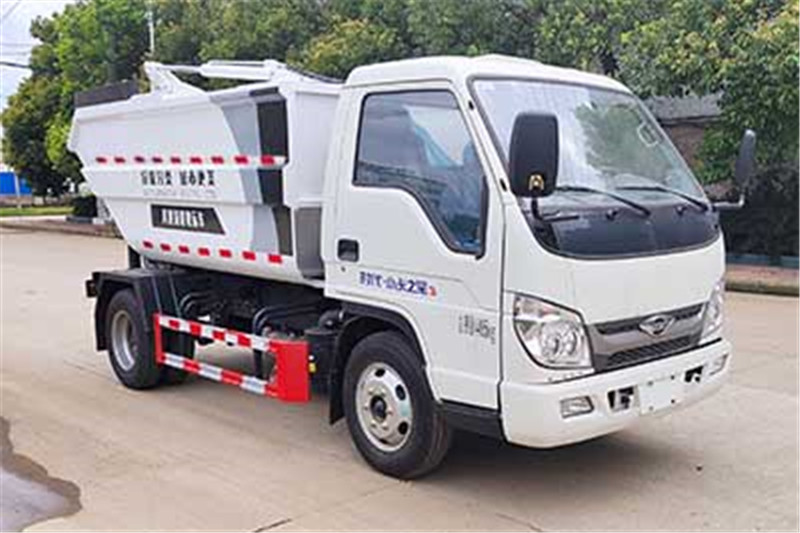

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 5160mm | ||
| Width | 1890mm | ||
| Height | 2200,2390mm | ||
| Curb Weight | 3390kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 105km/h | ||
| Chassis | |||
| Chassis Model | BJ1045V9JB5-54 | ||
| Front/Rear Overhang | 1130/1180mm | ||
| Number of Leaf Springs | 7/7+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2850mm | ||
| Axle Load | 1617/2878kg | ||
| Front Wheel Track | 1495,1415mm | ||
| Rear Wheel Track | 1435mm | ||
| Approaching/Departuring Angle | 20/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| Q23-115C60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
