| Basic Information | |||

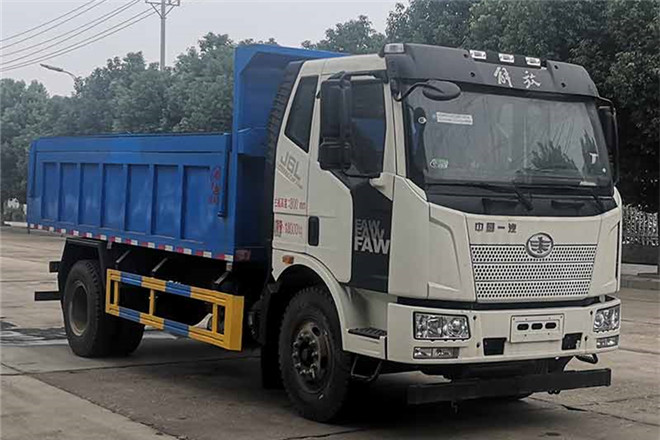

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005, GB17691-2018 national Ⅵ emission standards | ||
| Length | 7800,6900mm | ||
| Width | 2510,2550mm | ||
| Height | 2900,3000,3100mm | ||
| Curb Weight | 7800kg | ||
| Gross Weight | 18000kg | ||
| Seats | 3,2 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | CA1180P62K1L2A1E6Z | ||
| Front/Rear Overhang | 1400/1900,1400/1500mm | ||
| Number of Leaf Springs | 10/12+8,12/12+8,13/12+8,7/7+6,9/12+8,12/10+9,7/7+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5300,5000,4700,4500,5600,5800,4200,4000,3800mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1928,1827,1950,1938mm | ||
| Rear Wheel Track | 1878,1860mm | ||
| Approaching/Departuring Angle | 17/15,17/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20,11.00R20,295/80R22.5,275/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CA4DK1-18E6 | China FAW Group Co., Ltd. | 139kW | 4764ml |
| CA4DK1-22E6 | China FAW Group Co., Ltd. | 165kW | 4764ml |
| CA6DH1-22E6 | China FAW Group Co., Ltd. | 165kW | 5700ml |
| CA6DH1-24E6 | China FAW Group Co., Ltd. | 179kW | 5700ml |
| D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6700ml |
