| Basic Information | |||

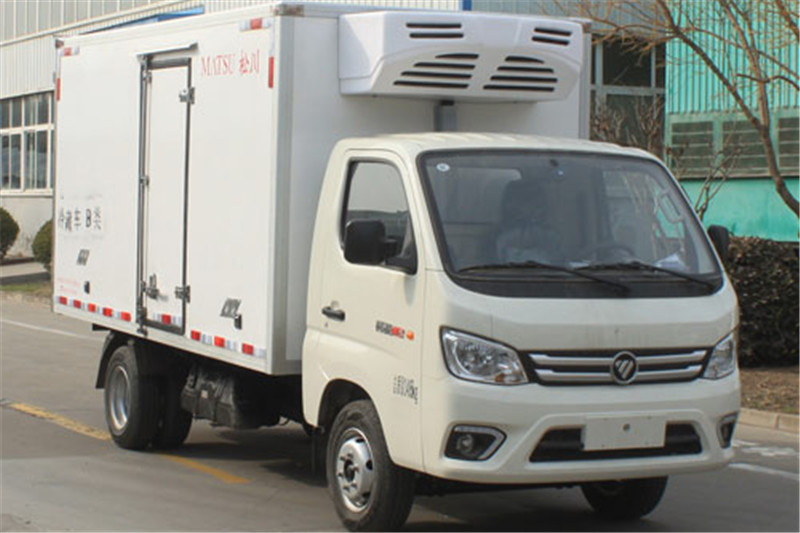

| Usage | Refrigerated Van | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.6-2016 national Ⅵ emission standards | ||
| Length | 5205,5605mm | ||
| Width | 1875,1900,1735,1810mm | ||
| Height | 2660,2700mm | ||
| Curb Weight | 1900kg | ||
| Gross Weight | 3495kg | ||
| Seats | 2 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | BJ1032V5JV5-01 | ||
| Front/Rear Overhang | 1075/1280,1075/1330mm | ||
| Number of Leaf Springs | 3/5+2,2/3+2,3/3+2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2850,3200,3300mm | ||
| Axle Load | 1295/2200kg | ||
| Front Wheel Track | 1410mm | ||
| Rear Wheel Track | 1320mm | ||
| Approaching/Departuring Angle | 23/24,23/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 185R14LT 6PR,175R14LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DAM15KL | Harbin Dongan Automobile Power Co., Ltd. | 85kW | 1498ml |
| DAM16KL | Harbin Dongan Automobile Power Co., Ltd. | 90kW | 1597ml |
