| Basic Information | |||

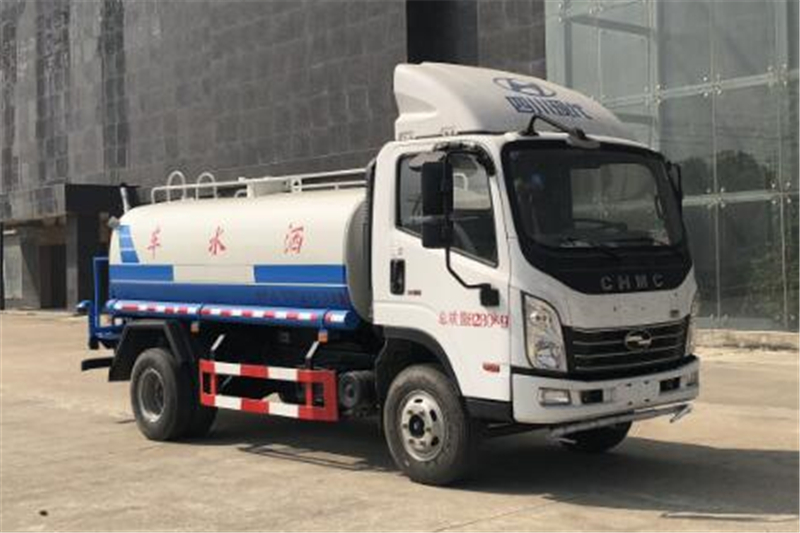

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6350mm | ||
| Width | 2120mm | ||
| Height | 2400,2850mm | ||
| Curb Weight | 4150kg | ||
| Gross Weight | 8280kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | CNJ1080ZDB33V | ||
| Front/Rear Overhang | 1110/1940mm | ||
| Number of Leaf Springs | 3/9+7,9/11+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 3140/5140kg | ||
| Front Wheel Track | 1650,1628mm | ||
| Rear Wheel Track | 1540,1586,1640mm | ||
| Approaching/Departuring Angle | 18/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16,8.25R16,8.25-16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4FA130-50 | Guangxi Yuchai Machinery Co., Ltd. | 95kW | 2982ml |
| JE493ZLQ5 | Jiangxi Isuzu Engine Co., Ltd. | 85kW | 2771ml |
| ISF2.8s5129T | Beijing Foton Cummins Engine Co., Ltd. | 96kW | 2780ml |
| ISF3.8s5141 | Beijing Foton Cummins Engine Co., Ltd. | 105kW | 3760ml |
| D25TCIE1 | Kunming Yunnei Power Co., Ltd. | 105kW | 2499ml |
