| Basic Information | |||

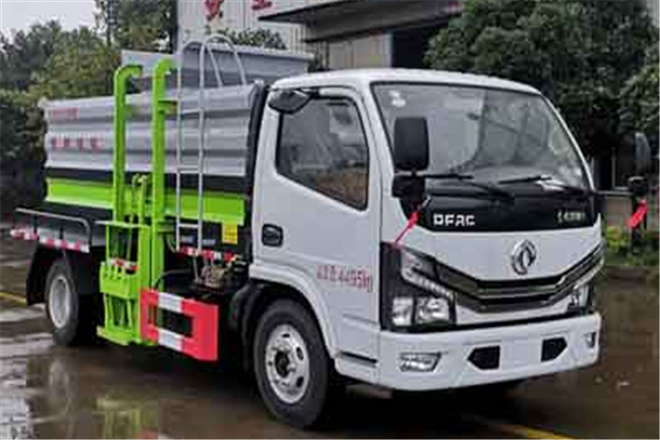

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5700,5990mm | ||
| Width | 2050,2100mm | ||
| Height | 2220,2270,2550,2650mm | ||
| Curb Weight | 3900kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | EQ1045SJ3CDF | ||
| Front/Rear Overhang | 1055/1695,1055/1337,1055/1627mm | ||
| Number of Leaf Springs | 6/6+5,3/3+3,2/3+2,5/7+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2700,2950,3308mm | ||
| Axle Load | 1600/2895kg | ||
| Front Wheel Track | 1525,1519,1472mm | ||
| Rear Wheel Track | 1498,1516,1586,1458mm | ||
| Approaching/Departuring Angle | 28/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 93kW | 1999ml |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
| CA4DB1-11E6 | China FAW Group Co., Ltd. | 81kW | 2207ml |
| ZD30D16-6N | Dongfeng Light Engine Co., Ltd. | 120kW | 2953ml |
| CY4BK461 | Dongfeng Chaoyang Diesel Co., Ltd. | 95kW | 3707ml |
| CY4BK161 | Dongfeng Chaoyang Diesel Co., Ltd. | 105kW | 3856ml |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 90kW | 2000ml |
| CA4DB1-13E6 | China FAW Group Co., Ltd. | 95kW | 2207ml |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 96kW | 2800ml |
| D20TCIF11 | Kunming Yunnei Power Co., Ltd. | 93kW | 1999ml |
