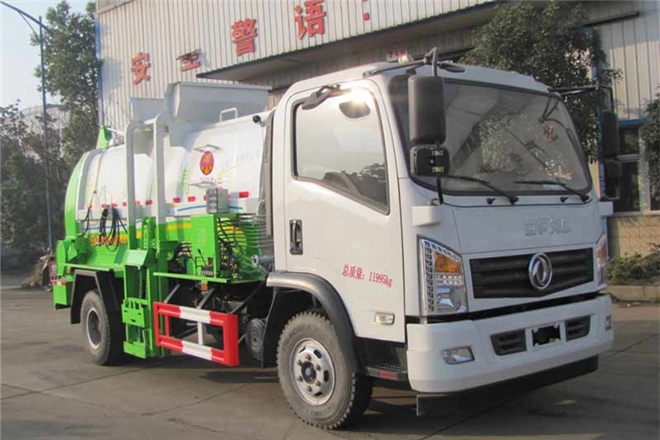

Suizhou Dongzheng SZD5125TCA6 Kitchen Waste Vehicle

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length	6600mm
Width	2260,2360mm
Height	2850mm
Curb Weight	6200kg
Gross Weight	11995kg
Seats	3
Max Speed	103km/h
Chassis
Chassis Model	EQ1125SJ8CDC
Front/Rear Overhang	1130/1670mm
Number of Leaf Springs	8/10+7,12/12+9
Number of Axles	2
Wheelbase	3800,3950,4050,4100,4400,3600mm
Axle Load	4350/7645kg
Front Wheel Track	1745,1802,1820,1842,1765mm
Rear Wheel Track	1630,1650,1800,1720mm
Approaching/Departuring Angle	21/16°
Tire
Number of Tires	6
Tire	245/70R19.5,8.25R20
Engine
Model	Brand	Power	Displacement
D4.0NS6B170	Dongfeng Cummins Engine Co., Ltd.	125kW	4000ml
D4.0NS6B185	Dongfeng Cummins Engine Co., Ltd.	136kW	4000ml
YCS04190-68	Guangxi Yuchai Machinery Co., Ltd.	140kW	4156ml
ZD30D16-6N	Dongfeng Light Engine Co., Ltd.	120kW	2953ml
D25TCIF1	Kunming Yunnei Power Co., Ltd.	110kW	2499ml
D30TCIF1	Kunming Yunnei Power Co., Ltd.	125kW	2977ml
D40TCIF1	Kunming Yunnei Power Co., Ltd.	135kW	4052ml
D45TCIF1	Kunming Yunnei Power Co., Ltd.	162kW	4461ml
NV30-C6G	Dongfeng Chaoyang Diesel Co., Ltd.	115kW	2968ml
NV30-C6C	Dongfeng Chaoyang Diesel Co., Ltd.	120kW	3093ml
NV30-C6D	Dongfeng Chaoyang Diesel Co., Ltd.	120kW	2968ml
CY4SK161	Dongfeng Chaoyang Diesel Co., Ltd.	135kW	3856ml
CY4SK261	Dongfeng Chaoyang Diesel Co., Ltd.	125kW	3856ml
CY4SK361	Dongfeng Chaoyang Diesel Co., Ltd.	125kW	3856ml
YCY30165-60	Guangxi Yuchai Machinery Co., Ltd.	121kW	2970ml
D4.0NS6B160	Dongfeng Cummins Engine Co., Ltd.	118kW	4000ml
CY4BK261	Dongfeng Chaoyang Diesel Co., Ltd.	100kW	3707ml
YCY24140-60	Guangxi Yuchai Machinery Co., Ltd.	103kW	2360ml
Q28-130E60	Anhui Quanchai Power Co., Ltd.	96kW	2800ml
H30-165E60	Anhui Quanchai Power Co., Ltd.	120kW	3000ml
D4.0NS6B195		143kW	4000ml
CA4DD2-18E6-30		132kW	3230ml
