Basic Information | |||

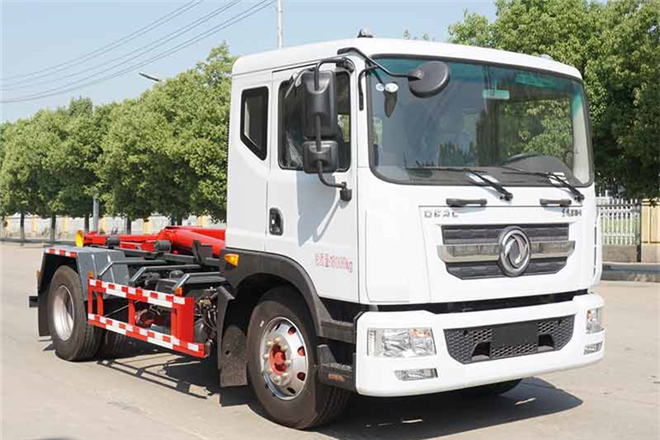

Usage | Refuse Collector | ||
Fuel Type | Diesel | ||
Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
Length | 6500,7050mm | ||
Width | 2500mm | ||
Height | 3100mm | ||
Curb Weight | 6750kg | ||
Gross Weight | 18000kg | ||
Seats | 2,3 | ||
Max Speed | 105km/h | ||
Chassis | |||
Chassis Model | EQ1185LJ9CDE | ||
Front/Rear Overhang | 1260/1290mm | ||
Number of Leaf Springs | 8/10+7 | ||
Number of Axles | 2 | ||
Wheelbase | 3950,4500,4700,5000,5300,5600mm | ||
Axle Load | 6500/11500kg | ||
Front Wheel Track | 1862,1933,1949mm | ||
Rear Wheel Track | 1806,1865mm | ||
Approaching/Departuring Angle | 19/21° | ||
Tire | |||
Number of Tires | 6 | ||
Tire | 295/80R22.5,10.00R20,275/80R22.5 | ||
Engine | |||
Model | Brand | Power | Displacement |
B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
D4.5NS6B220 | Dongfeng Cummins Engine Co., Ltd. | 162kW | 4500ml |
D4.0NS6B195 | Dongfeng Cummins Engine Co., Ltd. | 143kW | 4000ml |
YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
CY4SK761 | Dongfeng Chaoyang Diesel Co., Ltd. | 145kW | 4087ml |
B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
YCY30165-60 | Guangxi Yuchai Machinery Co., Ltd. | 121kW | 2970ml |
