| Basic Information | |||

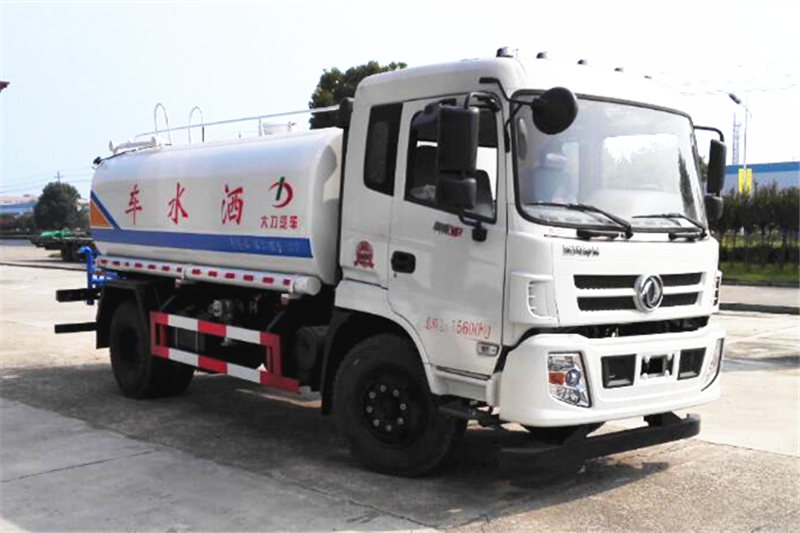

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7600,8150mm | ||
| Width | 2480mm | ||
| Height | 3150mm | ||
| Curb Weight | 5405kg | ||
| Gross Weight | 15600kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1168GLVJ | ||
| Front/Rear Overhang | 1220/2430,1250/2400,1450/2200mm | ||
| Number of Leaf Springs | 9/11+8,8/10+8,8/11+8,9/10+8,3/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,3950,4200,4500,4700,5100,4400mm | ||
| Axle Load | 5600/10000kg | ||
| Front Wheel Track | 1760,1810,1910,1940mm | ||
| Rear Wheel Track | 1670,1690,1800,1860,1820mm | ||
| Approaching/Departuring Angle | 24/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00-20 16PR,10.00R20 16PR,9.00R20 16PR,9.00-20 16PR,10R22.5 16PR,275/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4FA130-50 | Guangxi Yuchai Machinery Co., Ltd. | 95kW | 2982ml |
| YC4E160-56 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 4260ml |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd. | 132kW | 4500ml |
| 4DX23S-140E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 105kW | 3857ml |
| CA4DLD-18E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 134kW | 4400ml |
| 4DX23-130E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 97.5kW | 3857ml |
| YN38CRE1 | Kunming Yunnei Power Co., Ltd. | 95kW | 3760ml |
