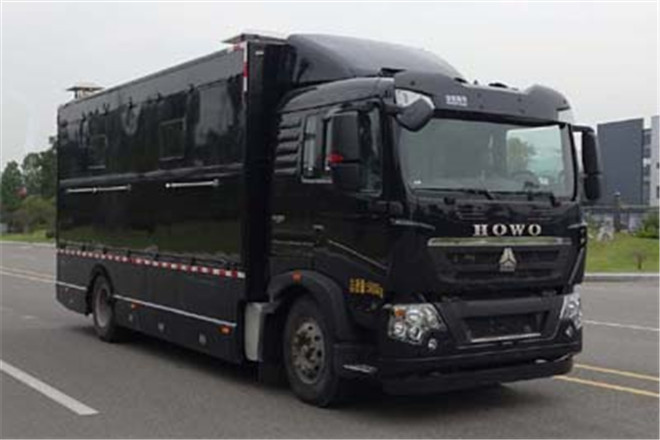

Chongqing Jinguan SLT5150XCCFH2W Dining Vehicle

Basic Information
Usage	Others
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	9440mm
Width	2520mm
Height	3790mm
Curb Weight	13305kg
Gross Weight	15000kg
Seats	3,2
Max Speed	101km/h
Chassis
Chassis Model	ZZ5167XXYM561GE1
Front/Rear Overhang	1430/2410mm
Number of Leaf Springs	11/9+8,3/9+8,3/3+2
Number of Axles	2
Wheelbase	5600mm
Axle Load	5600/9400kg
Front Wheel Track	1930,1960mm
Rear Wheel Track	1800,1860mm
Approaching/Departuring Angle	19/10°
Tire
Number of Tires	6
Tire	295/80R22.5,275/80R22.5,11R22.5,10.00R20,10.00-20
Engine
Model	Brand	Power	Displacement
MC07.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	6870ml
MC07.24-50	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
MC07.28-50	China National Heavy Duty Truck Group Co., Ltd.	206kW	6870ml
MC07.21-50	China National Heavy Duty Truck Group Co., Ltd.	151kW	6870ml
MC07.24-50	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
MC07.28-50	China National Heavy Duty Truck Group Co., Ltd.	206kW	6870ml
MC07.24-52	China National Heavy Duty Truck Group Co., Ltd.	176kW	6870ml
