| Basic Information | |||

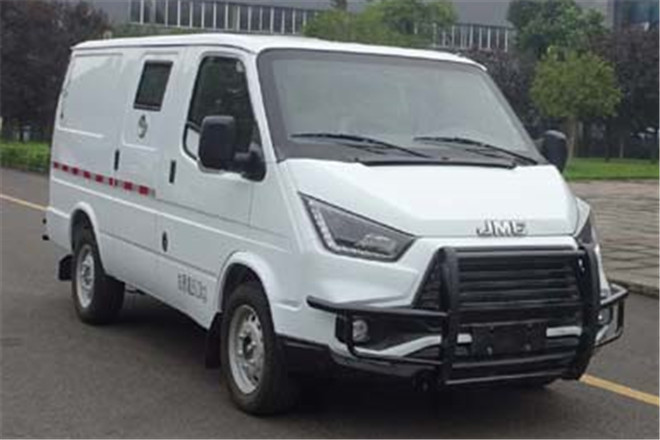

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5370,5050,5190,5230,5020,4700,4840,4880mm | ||
| Width | 1972mm | ||
| Height | 2080,2040,2280,2240,2150,2110mm | ||
| Curb Weight | 2510kg | ||
| Gross Weight | 3510kg | ||
| Seats | 6,5 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | JX6490T-L6 | ||
| Front/Rear Overhang | 1122/1413,982/1233,1122/1233,982/1413,1122/1063,982/883,1122/883,982/1063mm | ||
| Number of Leaf Springs | -/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2835mm | ||
| Axle Load | 1570/1940kg | ||
| Front Wheel Track | 1692mm | ||
| Rear Wheel Track | 1700mm | ||
| Approaching/Departuring Angle | 17/17,22/23,22/17,17/23° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/65R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| JX493ZLQ6 | Jiangling Motor Corporation Ltd. | 85kW | 2771ml |
