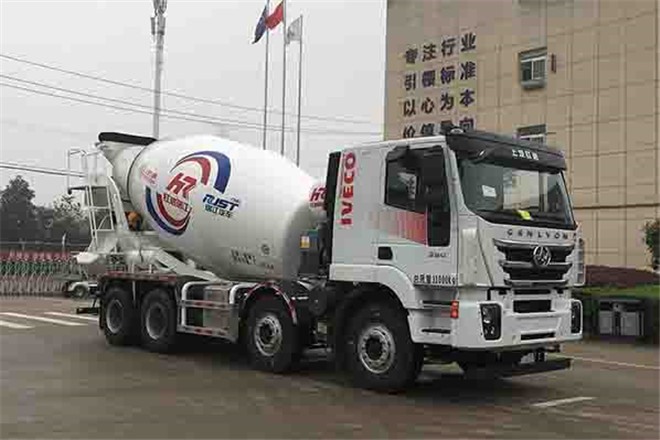

RJST WL5310GJBCQ28 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length	10200mm
Width	2550mm
Height	3990mm
Curb Weight	14100kg
Gross Weight	31000kg
Seats	2
Max Speed	80km/h
Chassis
Chassis Model	CQ1317HL6Z
Front/Rear Overhang	1435/2565mm
Number of Leaf Springs	3/3/6,8/8/12,9/9/12,10/10/12,3/3/12
Number of Axles	4
Wheelbase	2000+2800+1400,2000+3000+1400,2000+4000+1400,2000+3200+1400,2150+4250+1400mm
Axle Load	6500/6500/18000(two axles)kg
Front Wheel Track	2020/2020,2040/2040,2060/2060mm
Rear Wheel Track	1858/1858mm
Approaching/Departuring Angle	16/14°
Tire
Number of Tires	12
Tire	12R22.5 18PR,315/80R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/60R22.5 20PR
Engine
Model	Brand	Power	Displacement
SC10E400Q6	Shanghai Deisel Engine Co., Ltd.	294kW	10420ml
SC10E330Q6	Shanghai Deisel Engine Co., Ltd.	243kW	10420ml
SC10E370Q6	Shanghai Deisel Engine Co., Ltd.	272kW	10420ml
SC10E300Q6	Shanghai Deisel Engine Co., Ltd.	221kW	10420ml
SC10E420Q6	Shanghai Deisel Engine Co., Ltd.	309kW	10420ml
F2CCE611G*M	Saic Fiat Powertrain Hongyan Co., Ltd.	287kW	8709ml
F2CCE611H*M	Saic Fiat Powertrain Hongyan Co., Ltd.	263kW	8709ml
F2CCE611J*M	Saic Fiat Powertrain Hongyan Co., Ltd.	243kW	8709ml
F2CCE611K*M	Saic Fiat Powertrain Hongyan Co., Ltd.	215kW	8709ml
