| Basic Information | |||

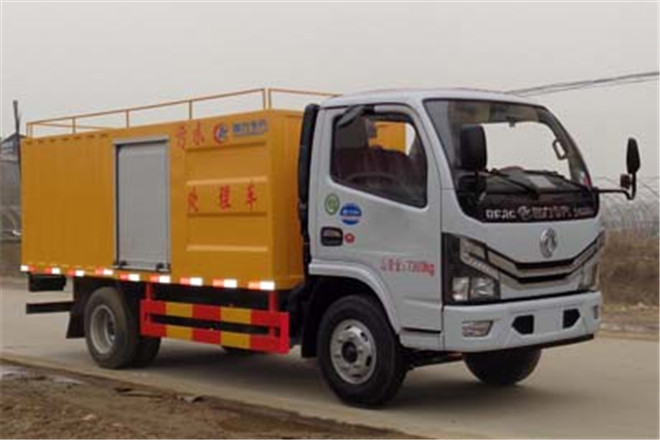

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5995,5915,5510mm | ||
| Width | 1990mm | ||
| Height | 2300mm | ||
| Curb Weight | 4365kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | EQ1045SJ3CDF | ||
| Front/Rear Overhang | 1055/1632,1055/1910,1055/1755mm | ||
| Number of Leaf Springs | 6/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2700,2950,3308mm | ||
| Axle Load | 1600/2895kg | ||
| Front Wheel Track | 1525,1519mm | ||
| Rear Wheel Track | 1498,1516mm | ||
| Approaching/Departuring Angle | 27.7/20,27.7/13,27.7/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16,7.00R16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 93kW | 1999ml |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
| CA4DB1-11E6 | China FAW Group Corporation | 81kW | 2207ml |
| ZD30D16-6N | Dongfeng Light-duty Engine Co., Ltd. | 120kW | 2953ml |
| CY4BK461 | Dongfeng Chaoyang Diesel Co., Ltd. | 95kW | 3707ml |
| CY4BK161 | Dongfeng Chaoyang Diesel Co., Ltd. | 105kW | 3856ml |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 90kW | 2000ml |
