| Basic Information | |||

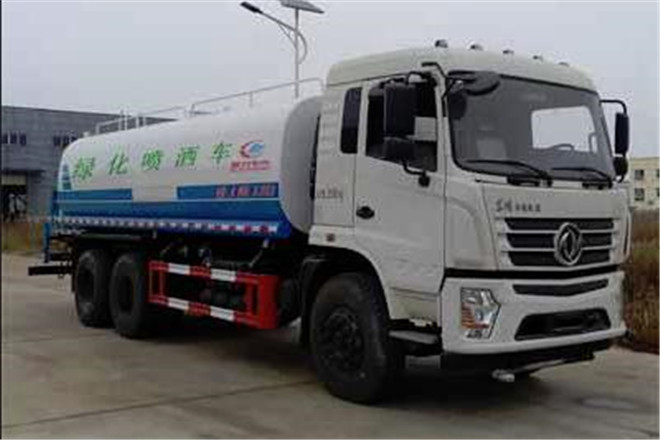

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10100,10290mm | ||
| Width | 2500mm | ||
| Height | 3200mm | ||
| Curb Weight | 10280kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1250GD5DJ1 | ||
| Front/Rear Overhang | 1250/3200,1440/3200mm | ||
| Number of Leaf Springs | 8/9,8/10,9/10,8/13,9/13 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1300,5400+1300,5900+1300,4750+1300,4350+1350,5900+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1940,1965,1985mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 26/13° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20 18PR,11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6JA240-50 | Guangxi Yuchai Machinery Co., Ltd. | 177kW | 6870ml |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd. | 180kW | 6700ml |
| ISB220 50 | Dongfeng Cummins Engine Co., Ltd. | 162kW | 5900ml |
| YC6A270-50 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 7520ml |
| YC6L310-50 | Guangxi Yuchai Machinery Co., Ltd. | 228kW | 8424ml |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd. | 198kW | 6700ml |
