| Basic Information | |||

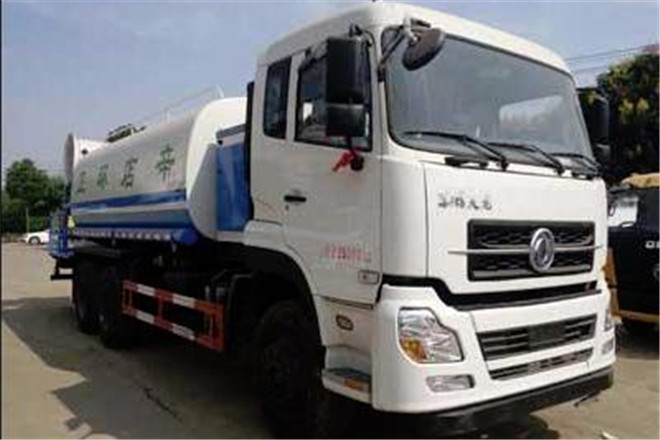

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅴ emission standards | ||
| Length | 10210,9980mm | ||
| Width | 2500mm | ||
| Height | 3770mm | ||
| Curb Weight | 11560kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | DFL1250A13 | ||
| Front/Rear Overhang | 1500/3010,1500/2780,1480/3030,1480/2800mm | ||
| Number of Leaf Springs | 8/9,8/10,9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1350,5350+1350,5700+1350,3800+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2040,1965mm | ||
| Rear Wheel Track | 1860/1860,1880/1880mm | ||
| Approaching/Departuring Angle | 18/14° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20 18PR,11.00R20 18PR,295/80R22.5 18PR,12.00R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd. | 180kW | 6700ml |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd. | 198kW | 6700ml |
| DDi75S350-50 | Dongfeng Trucks Co., Ltd. | 257kW | 7530ml |
| DDi75S245-50 | Dongfeng Trucks Co., Ltd. | 180kW | 7530ml |
| DDi75S292-50 | Dongfeng Trucks Co., Ltd. | 215kW | 7530ml |
| YC6JA240-50 | Guangxi Yuchai Machinery Co., Ltd. | 177kW | 6870ml |
