| Basic Information | |||

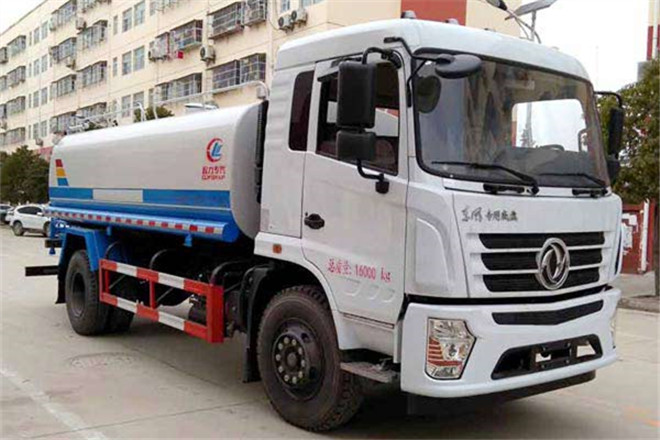

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8390,7840mm | ||
| Width | 2550mm | ||
| Height | 3250mm | ||
| Curb Weight | 6600kg | ||
| Gross Weight | 16000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFV1163GP6DJ | ||
| Front/Rear Overhang | 1440/2450mm | ||
| Number of Leaf Springs | 8/10+8,3/4+3,3/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,3950,4200,4500,4700,5100mm | ||
| Axle Load | 5600/10400kg | ||
| Front Wheel Track | 1810,1880mm | ||
| Rear Wheel Track | 1800,1820,1860mm | ||
| Approaching/Departuring Angle | 18/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 4156ml |
| D4.0NS6B195 | Dongfeng Cummins Engine Co., Ltd. | 143kW | 4000ml |
| D4.0NS6B170 | Dongfeng Cummins Engine Co., Ltd. | 125kW | 4000ml |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd. | 110kW | 2499ml |
