| Basic Information | |||

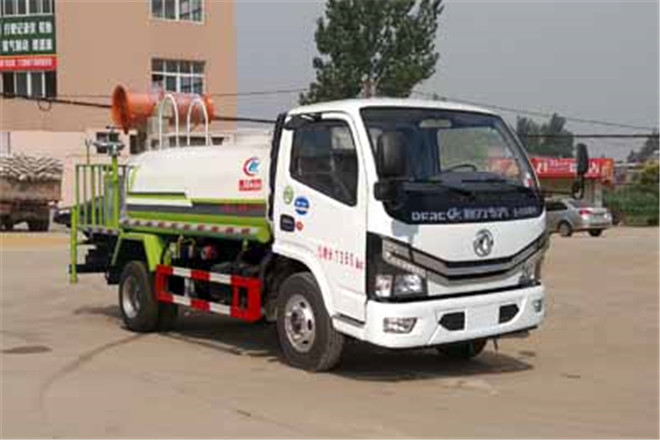

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 6500,5990mm | ||
| Width | 2000mm | ||
| Height | 2800,2400mm | ||
| Curb Weight | 3450kg | ||
| Gross Weight | 7360kg | ||
| Seats | 2 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | EQ1075SJ3CDF | ||
| Front/Rear Overhang | 1055/2137,1055/1627mm | ||
| Number of Leaf Springs | 6/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2700,2950,3308mm | ||
| Axle Load | 2640/4720kg | ||
| Front Wheel Track | 1525,1519mm | ||
| Rear Wheel Track | 1498,1516mm | ||
| Approaching/Departuring Angle | 18/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 93kW | 1999ml |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
| CA4DB1-11E6 | China FAW Group Corporation | 81kW | 2207ml |
| ZD30D16-6N | Dongfeng Light-duty Engine Co., Ltd. | 120kW | 2953ml |
| CY4BK461 | Dongfeng Chaoyang Diesle Co., Ltd. | 95kW | 3707ml |
| CY4BK161 | Dongfeng Chaoyang Diesel Co., Ltd. | 105kW | 3856ml |
| Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
| H20-120E60 | Anhui Quanchai Power Co., Ltd. | 90kW | 2000ml |
