| Basic Information | |||

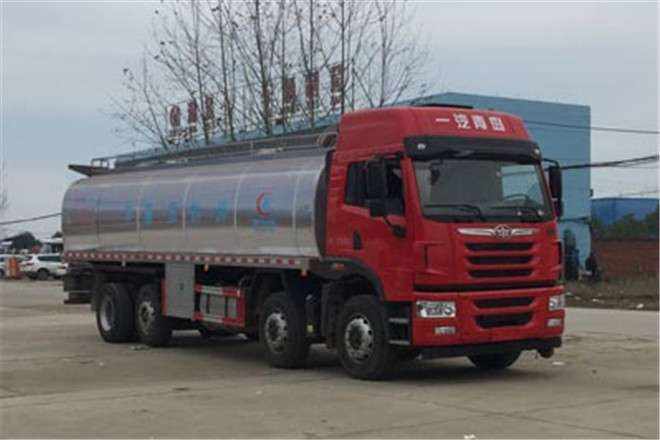

| Usage | Delivery Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11200mm | ||
| Width | 2500mm | ||
| Height | 3350mm | ||
| Curb Weight | 13765kg | ||
| Gross Weight | 31000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | CA1311P1K2L6T10BE5A80 | ||
| Front/Rear Overhang | 1375/2415mm | ||
| Number of Leaf Springs | 12/12/6+-/10+9,3/3/6+-/10+9,10/10/6+-/10+9 | ||
| Number of Axles | 4 | ||
| Wheelbase | 1900+4160+1350mm | ||
| Axle Load | 6500/6500/18000(two axles)kg | ||
| Front Wheel Track | 1964/1964mm | ||
| Rear Wheel Track | 1960/1847mm | ||
| Approaching/Departuring Angle | 18/10° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 295/80R22.5,315/80R22.5,11.00R20,275/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CA6DL1-26E5 | China FAW Corporation Group | 195kW | 7700ml |
| CA6DL1-29E5 | China FAW Corporation Group | 216kW | 7700ml |
| CA6DK1-28E51 | China FAW Corporation Group | 209kW | 7146ml |
