| Basic Information | |||

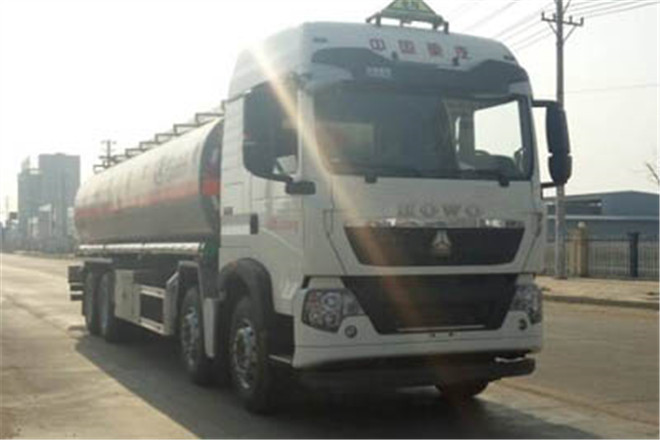

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11840mm | ||
| Width | 2500mm | ||
| Height | 3400mm | ||
| Curb Weight | 11505kg | ||
| Gross Weight | 32000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | ZZ1327N466GE1 | ||
| Front/Rear Overhang | 1430/2635mm | ||
| Number of Leaf Springs | 11/11/-/-,3/3/-/- | ||
| Number of Axles | 4 | ||
| Wheelbase | 1800+3775+1400,1800+4575+1400,1800+3200+1400mm | ||
| Axle Load | 6500/7000/18500(two axles)kg | ||
| Front Wheel Track | 2015/2015,2035/2035mm | ||
| Rear Wheel Track | 1830/1830,1850/1850mm | ||
| Approaching/Departuring Angle | 19/10° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 295/80R22.5,12R22.5,11.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MC07.28-50 | China National Heavy Duty Truck Group Co., Ltd. | 206kW | 6870ml |
| MC07.31-50 | China National Heavy Duty Truck Group Co., Ltd. | 228kW | 6870ml |
| MC07.34-50 | China National Heavy Duty Truck Group Co., Ltd. | 248kW | 6870ml |
| MC07.35-50 | China National Heavy Duty Truck Group Co., Ltd. | 254kW | 6870ml |
| MC09.38-50 | China National Heavy Duty Truck Group Co., Ltd. | 276kW | 8765ml |
