| Basic Information | |||

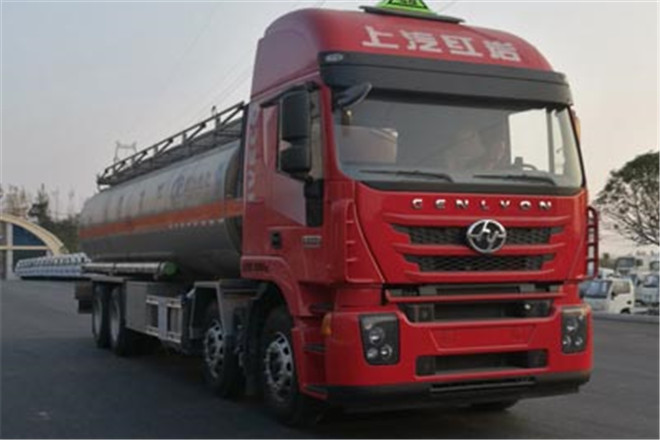

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11900mm | ||
| Width | 2550mm | ||
| Height | 3600mm | ||
| Curb Weight | 11765kg | ||
| Gross Weight | 32000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | CQ1326HMVG39-466 | ||
| Front/Rear Overhang | 1435/2665,1435/3065mm | ||
| Number of Leaf Springs | 3/3/-/-,5/5/-/- | ||
| Number of Axles | 4 | ||
| Wheelbase | 1800+3900+1400,1800+4200+1400,1800+4600+1400mm | ||
| Axle Load | 6500/6500/19000(two axles)kg | ||
| Front Wheel Track | 2006/2006,2020/2020,2070/2070mm | ||
| Rear Wheel Track | 1850/1850mm | ||
| Approaching/Departuring Angle | 17/10,17/9° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 295/80R22.5 18PR,12R22.5 18PR,315/60R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F2CCE611C*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 235kW | 8709ml |
| F2CCE611D*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 215kW | 8709ml |
