| Basic Information | |||

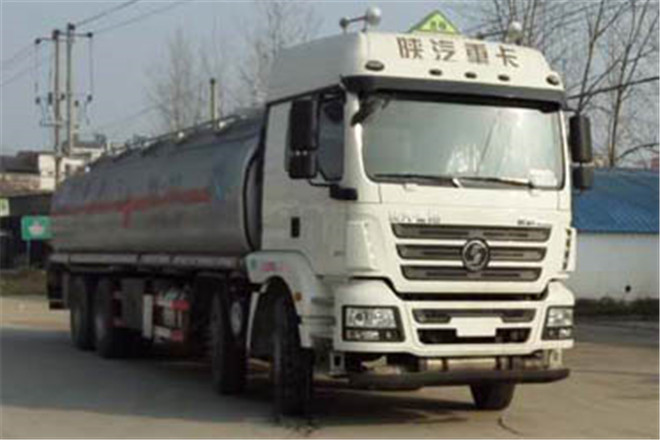

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11800mm | ||
| Width | 2500mm | ||
| Height | 3660,3360mm | ||
| Curb Weight | 11800kg | ||
| Gross Weight | 31000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | SX5310GYYMB6 | ||
| Front/Rear Overhang | 1525/2550,1525/2750mm | ||
| Number of Leaf Springs | 3/3/5, left 14, right 13/left 14, right 13/12 | ||
| Number of Axles | 4 | ||
| Wheelbase | 1800+4375+1350,1800+4575+1350mm | ||
| Axle Load | 6500/6500/18000(two axles)kg | ||
| Front Wheel Track | 2011/2011,2036/2036mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 14/11° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 11.00R20,11R22.5,12.00R20 18PR,12R22.5,295/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP7.300E51 | Weichai Holding Group Corporation | 220kW | 7470ml |
| WP9H336E50 | Weichai Holding Group Corporation | 247kW | 8800ml |
| ISM11E5 345 | Xi'an Cummins Engine Co., Ltd. | 250kW | 10800ml |
