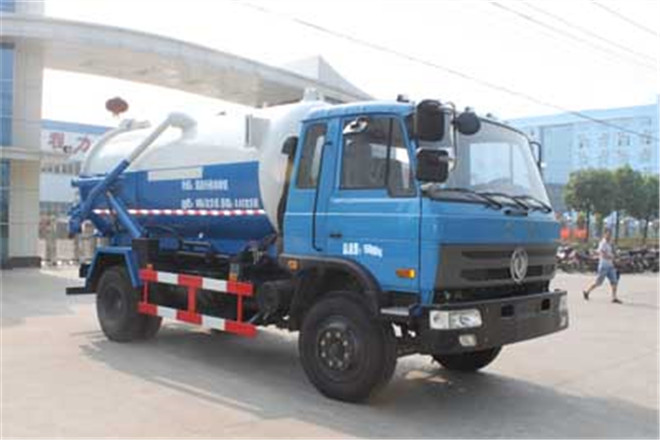

CLW5162GXWT5 Suction-type Sewer Scavenger

Basic Information
Usage	Suction-type Sewer Scavenger
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	8000,7800,7810,7610mm
Width	2500mm
Height	3250mm
Curb Weight	7400kg
Gross Weight	15800kg
Seats	2,3
Max Speed	90km/h
Chassis
Chassis Model	EQ1160GD5DJ
Front/Rear Overhang	1440/1860,1250/1860mm
Number of Leaf Springs	9/12+10,8/10+7,8/10+8,7/9+6,11/11+10,9/10+8
Number of Axles	2
Wheelbase	3950,4500,5100,4700,4200,5600,5700,6300mm
Axle Load	5800/10000kg
Front Wheel Track	1900,1880,1810,1940mm
Rear Wheel Track	1860,1800,1800,1860,1830mm
Approaching/Departuring Angle	21/19°
Tire
Number of Tires	6
Tire	9.00-20 16PR,10.00-20 16PR,10.00R20 16PR
Engine
Model	Brand	Power	Displacement
ISD180 50	Dongfeng Cummins Engine Co., Ltd.	132kW	4500ml
YC6JA180-50	Guangxi Yuchai Machinery Co., Ltd.	132kW	6870ml
ISD190 50	Dongfeng Cummins Engine Co., Ltd.	144kW	6700ml
ISB170 50	Dongfeng Cummins Engine Co., Ltd.	125kW	5900ml
ISB190 50	Dongfeng Cummins Engine Co., Ltd.	140kW	5900ml
ISB210 50	Dongfeng Cummins Engine Co., Ltd.	155kW	5900ml
YC4E160-56	Guangxi Yuchai Machinery Co., Ltd.	118kW	4260ml
YC4S150-50	Guangxi Yuchai Machinery Co., Ltd.	110kW	3767ml
EQH180-52	Dongfeng Trucks Co., Ltd.	132kW	4752ml
WP4.1Q160E50	Weichai Power Yangzhou Diesel Co., Ltd.	115kW	4088ml
ISB180 50	Dongfeng Cummins Engine Co., Ltd.	132kW	5900ml
YC4S160-50	Guangxi Yuchai Machinery Co., Ltd.	118kW	3767ml
ISB220 50	Dongfeng Cummins Engine Co., Ltd.	162kW	5900ml
