Basic Information | |||

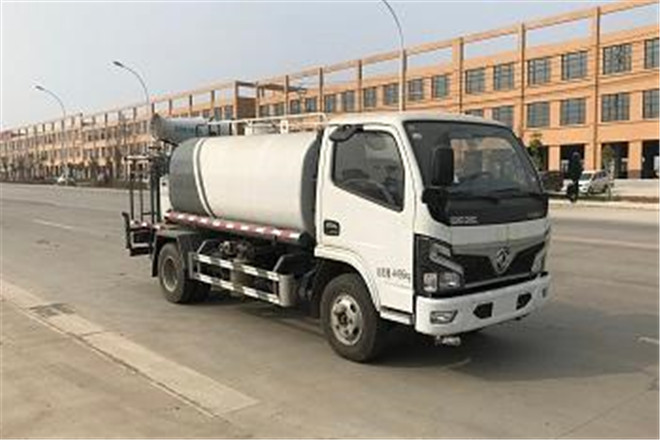

Usage | Multi-purpose Dust Suppression Truck | ||
Fuel Type | Diesel | ||
Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
Length | 5995,5630,5505mm | ||
Width | 1990mm | ||
Height | 2600mm | ||
Curb Weight | 3500kg | ||
Gross Weight | 4495kg | ||
Seats | 2 | ||
Max Speed | 110km/h | ||
Chassis | |||
Chassis Model | EQ1045SJ3CDF | ||
Front/Rear Overhang | 1055/1632,1055/1625,1055/1750mm | ||
Number of Leaf Springs | 6/6+5 | ||
Number of Axles | 2 | ||
Wheelbase | 2700,2950,3308mm | ||
Axle Load | 1600/2895kg | ||
Front Wheel Track | 1525,1519mm | ||
Rear Wheel Track | 1498,1516mm | ||
Approaching/Departuring Angle | 27.7/17,27.7/18,27.7/16° | ||
Tire | |||
Number of Tires | 6 | ||
Tire | 6.50R16,7.00R16 | ||
Engine | |||
Model | Brand | Power | Displacement |
D20TCIF1 | Kunming Yunnei Power Co., Ltd. | 93kW | 1999ml |
YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
CA4DB1-11E6 | China FAW Group Corporation | 81kW | 2207ml |
ZD30D16-6N | Dongfeng Light-duty Engine Co., Ltd. | 120kW | 2953ml |
CY4BK461 | Dongfeng Chaoyang Diesel Co., Ltd. | 95kW | 3707ml |
CY4BK161 | Dongfeng Chaoyang Diesel Co., Ltd. | 105kW | 3856ml |
Q23-115E60 | Anhui Quanchai Power Co., Ltd. | 85kW | 2300ml |
H20-120E60 | Anhui Quanchai Power Co., Ltd. | 90kW | 2000ml |
CA4DB1-13E6 | China FAW Group Corporation | 95kW | 2207ml |
