| Basic Information | |||

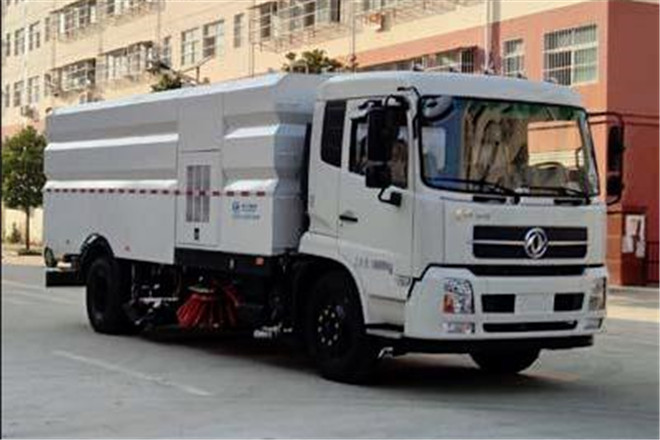

| Usage | Vacuum Sweeper | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7230,7380,7780,8080,8280,8580mm | ||
| Width | 2490mm | ||
| Height | 3100mm | ||
| Curb Weight | 11750kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 98km/h | ||
| Chassis | |||
| Chassis Model | DFH1180BX1V | ||
| Front/Rear Overhang | 1430/2150mm | ||
| Number of Leaf Springs | 7/9+6,8/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3650,3800,4200,4500,4700,5000,3950,5600mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1880,1900mm | ||
| Rear Wheel Track | 1800,1860,1820mm | ||
| Approaching/Departuring Angle | 20/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD270 50 | Dongfeng Cummins Engine Co., Ltd | 198kW | 6700ml |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd | 155kW | 6700ml |
| ISD180 50 | Dongfeng Cummins Engine Co., Ltd | 132kW | 4500ml |
| EQH180-53 | Dongfeng Trucks Co., Ltd | 132kW | 4752ml |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd | 132kW | 5900ml |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd | 155kW | 5900ml |
