| Basic Information | |||

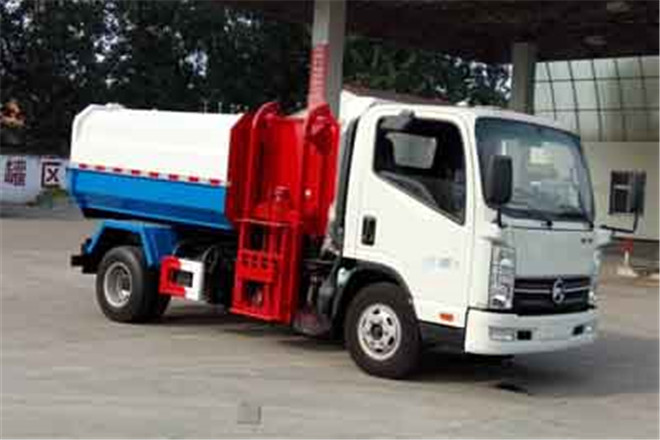

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5575mm | ||
| Width | 2050mm | ||
| Height | 2330mm | ||
| Curb Weight | 3750kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2,3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | KMC1042A33D5 | ||
| Front/Rear Overhang | 1135/1140mm | ||
| Number of Leaf Springs | 7/9+5,3/5+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 1860/2635kg | ||
| Front Wheel Track | 1540,1600,1680,1570,1500mm | ||
| Rear Wheel Track | 1550,1600,1790,1490mm | ||
| Approaching/Departuring Angle | 25/29° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 8PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| SD4D25R-70 | Jiangsu Sida Power Machinery Group Co., Ltd. | 70kW | 2545ml |
| YN27CRE1 | Kunming Yunnei Power Co., Ltd. | 70kW | 2672ml |
| SD4D28R-83 | Jiangsu Sida Power Machinery Group Co., Ltd. | 83kW | 2772ml |
| 4DW93-84E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 64kW | 2540ml |
| JE493ZLQ5 | Jiangxi ISUZU Engine Co., Ltd. | 85kW | 2771ml |
| 4DW94-95E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 72kW | 2720ml |
| YCD4N4S-110 | Guangxi Yuchai Machinery Co., Ltd. | 80kW | 2799ml |
| WP2.3Q110E50 | Weichai Power Yangzhou Diesel Plant | 81kW | 2290ml |
| YN27CRE10 | Kunming Yunnei Power Co., Ltd. | 85kW | 2672ml |
| D19TCIE3 | Kunming Yunnei Power Co., Ltd. | 85kW | 1910ml |
| WP2.3NQ130E50 | Weichai Holding Group Co., Ltd. | 96kW | 2290ml |
| CA4DB1-13E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 95kW | 2210ml |
