| Basic Information | |||

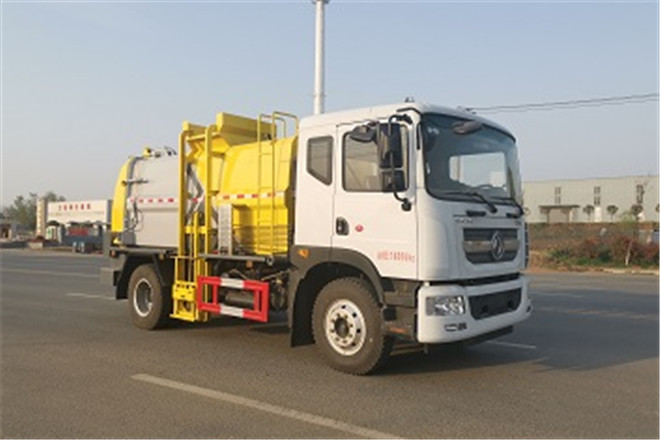

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7850,7650,7350,6950mm | ||
| Width | 2480mm | ||
| Height | 3150mm | ||
| Curb Weight | 7500kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1161LJ9BDE | ||
| Front/Rear Overhang | 1230/1770,1230/1220,1230/1420,1230/1220,1230/1020mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3950,4500,4700,5200,5600mm | ||
| Axle Load | 5600/10400kg | ||
| Front Wheel Track | 1858,1949,1923,1891mm | ||
| Rear Wheel Track | 1806,1865mm | ||
| Approaching/Departuring Angle | 19/15,19/17,19/16,19/17,19/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20,10.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4EG170-50 | Guangxi Yuchai Machinery Co., Ltd. | 125kW | 4730ml |
| YC4EG185-50 | Guangxi Yuchai Machinery Co., Ltd. | 136kW | 4730ml |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 5900ml |
| ISB180 50 | Dongfeng Cummins Engine Co., Ltd. | 132kW | 5900ml |
| ISD160 50 | Dongfeng Cummins Engine Co., Ltd. | 118kW | 4500ml |
| YC4S160-50 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 3767ml |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 6870ml |
