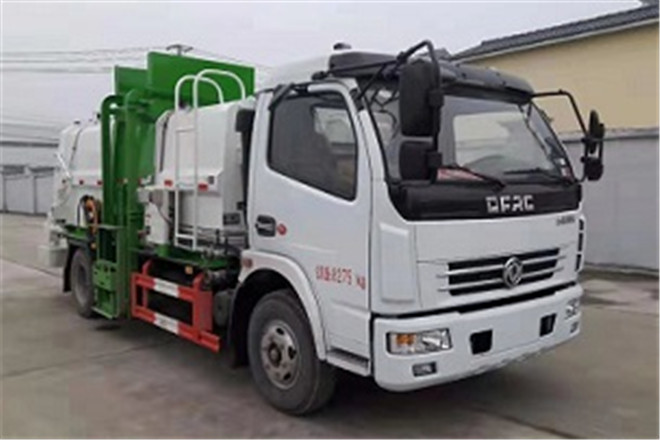

CLW5085TCAE5 Kitchen Waste Vehicle

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	6745mm
Width	2250mm
Height	2700mm
Curb Weight	5520kg
Gross Weight	8275kg
Seats	3
Max Speed	103km/h
Chassis
Chassis Model	EQ1080SJ8BDC
Front/Rear Overhang	1130/1515,1130/2307,1130/1815,1150/1795mm
Number of Leaf Springs	8/10+7
Number of Axles	2
Wheelbase	3800,3308,4100mm
Axle Load	3300/4975kg
Front Wheel Track	1740mm
Rear Wheel Track	1610,1586,1800mm
Approaching/Departuring Angle	20/14,20/11,20/12,20/13°
Tire
Number of Tires	6
Tire	7.50R16,7.50R16,245/70R19.5 12PR
Engine
Model	Brand	Power	Displacement
CY4SK251	Dongfeng Chaoyang Diesel Co., Ltd.	115kW	3856ml
YC4FA130-50	Guangxi Yuchai Machinery Co., Ltd.	95kW	2982ml
ISF3.8s5141	Beijing Foton Cummins Engine Corporation	105kW	3760ml
ZD30D15-5N	Dongfeng Light-duty Engine Co., Ltd.	110kW	2953ml
4DX23-140E5	FAW Jiefang Automobile Co., Ltd. Wuxi Plant	105kW	3857ml
YN38CRE1	Kunming Yunnei Power Co., Ltd.	95kW	3760ml
YC4Y22-15050	Guangxi Yuchai Machinery Co., Ltd.	110kW	2169ml
CY4SK251	Dongfeng Chaoyang Diesel Co., Ltd.	115kW	3856ml
YC4FA130-50	Guangxi Yuchai Machinery Co., Ltd.	95kW	2982ml
ISF3.8s5141	Beijing Foton Cummins Engine Corporation	105kW	3760ml
ZD30D15-5N	Dongfeng Light-duty Engine Co., Ltd.	110kW	2953ml
4DX23-140E5	FAW Jiefang Automobile Co., Ltd. Wuxi Plant	105kW	3857ml
YN38CRE1	Kunming Yunnei Power Co., Ltd.	95kW	3760ml
YC4Y22-15050	Guangxi Yuchai Machinery Co., Ltd.	110kW	2169ml
YC4S150-50	Guangxi Yuchai Machinery Co., Ltd.	110kW	3767ml
