| Basic Information | |||

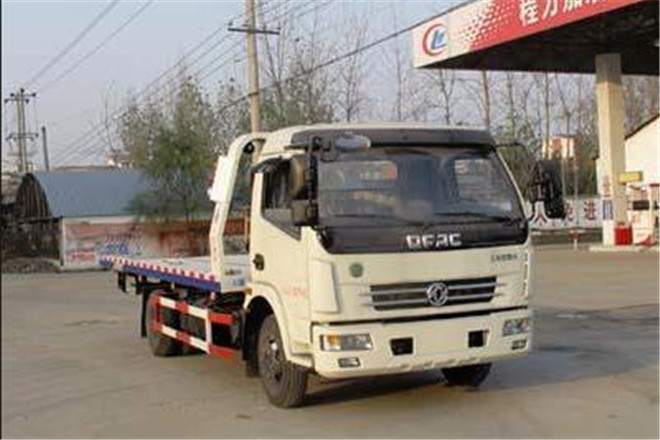

| Usage | Road-block Removal Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8350,8630mm | ||
| Width | 2350,2480mm | ||
| Height | 2750,2520mm | ||
| Curb Weight | 5600kg | ||
| Gross Weight | 9400kg | ||
| Seats | 3 | ||
| Max Speed | 103km/h | ||
| Chassis | |||
| Chassis Model | EQ1090SJ8BDE | ||
| Front/Rear Overhang | 1180/2770mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4400mm | ||
| Axle Load | 3400/6000kg | ||
| Front Wheel Track | 1745mm | ||
| Rear Wheel Track | 1640,1800mm | ||
| Approaching/Departuring Angle | 21.5/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CY4SK251 | Dongfeng Chaoyang Diesel Co., Ltd. | 115kW | 3856ml |
| YC4S150-50 | Guangxi Yuchai Machinery Co., Ltd. | 110kW | 3767ml |
| ISF3.8s5154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
