| Basic Information | |||

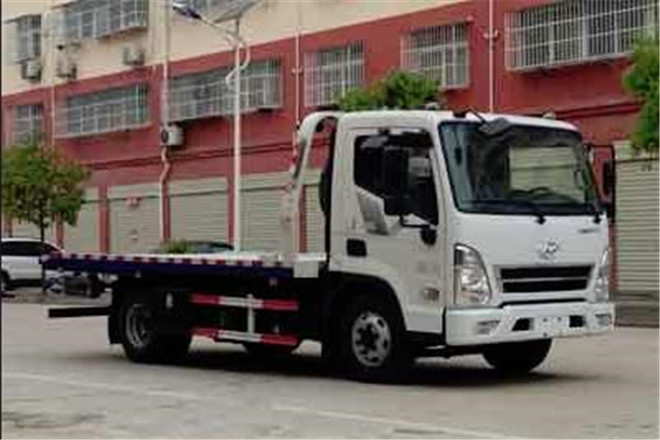

| Usage | Road-block Removal Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995mm | ||
| Width | 2300mm | ||
| Height | 2300mm | ||
| Curb Weight | 3800kg | ||
| Gross Weight | 4495kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | CHM1043GDC33V | ||
| Front/Rear Overhang | 1125/1570mm | ||
| Number of Leaf Springs | 4/5+3,7/7+4,6/6+4,8/8+4,3/9+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 1700/2795kg | ||
| Front Wheel Track | 1680,1700,1720,1745,1775,1795mm | ||
| Rear Wheel Track | 1495,1630,1604mm | ||
| Approaching/Departuring Angle | 21/17° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16,7.00R16 10PR,7.50R16 8PR,8.25R16 6PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF2.8s5129T | Beijing Foton Cummins Engine Corporation | 96kW | 2780ml |
| ISF3.8s5141 | Beijing Foton Cummins Engine Corporation | 105kW | 3760ml |
| ISF3.8s5154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
| JE493ZLQ5 | Jiangxi ISUZU Engine Co., Ltd. | 85kW | 2771ml |
| ISF2.8s5148T | Beijing Foton Cummins Engine Corporation | 110kW | 2780ml |
