| Basic Information | |||

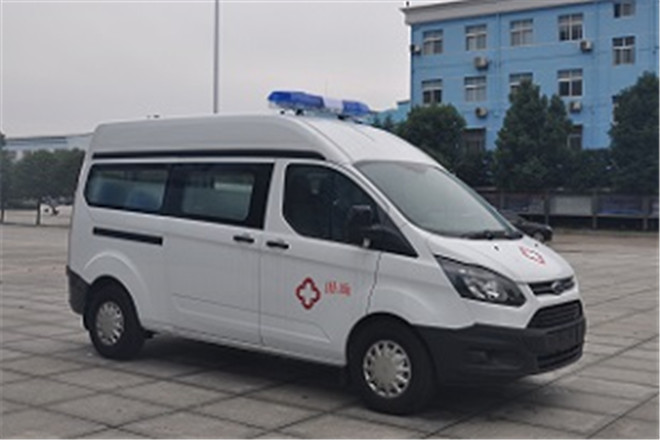

| Usage | Ambulance | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB18352.5-2013 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5341,5521mm | ||
| Width | 2032mm | ||
| Height | 2460,2590mm | ||
| Curb Weight | 2540kg | ||
| Gross Weight | 3495kg | ||
| Seats | 3-8 | ||
| Max Speed | 156km/h | ||
| Chassis | |||
| Chassis Model | JX6533TA-M5, Jiangling Motors Co., Ltd. | ||
| Front/Rear Overhang | 1014/1027,1014/1207mm | ||
| Number of Leaf Springs | -/1,-/2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300mm | ||
| Axle Load | 1560/1935kg | ||
| Front Wheel Track | 1736mm | ||
| Rear Wheel Track | 1720mm | ||
| Approaching/Departuring Angle | 20/25,20/23° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DURATORQ4D205L | Jiangling Motors Group Co., Ltd. | 89kW | 1998ml |
