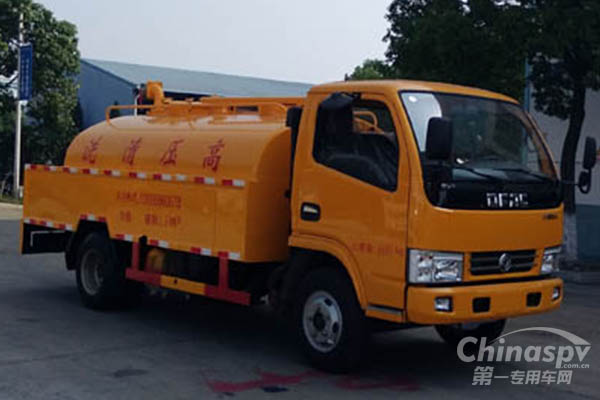

| Model | CLW5040GQX5 |
| Gross Weight | 4495 (kg) |
| Volume | 1.5 (cubic meter) |
| Rated Load | 1430 (Kg) |
| Curb Weight | 2935 (kg) |
| Dimensions | 5998,5490×2080×2380,2160,2040 (mm) |
| Approaching/Departuring Angle | 20/13(°) |
| Front/Rear Overhang | 1040/1650 (mm) |
| Number of Axles | 2 |
| Wheelbase | 3308,2800 (mm) |
| Axle Load | 1800/2695 (kg) |
| Max Speed | 99 (km/h) |
| Chassis type | EQ1041SJ3BDF |
| Number of Tires | 6 |
| Number of Leaf Spring | 6/6+5,3/3+3,2/3+2 |
| Tire | 7.00-16 8PR,7.00R16 8PR |
| Front Wheel Track | 1503,1485,1519,1595 (mm) |
| Rear Wheel Track | 1494,1516,1540,1586 (mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | CY4BK551 | YC4FA115-50 | 4B2-115C50 | ZD30D13-5N | D28D11-5DA | 4DW93-84E5 | YN27CRE1 | YN33CRE1 | SD4D25R-70 | 4DX23-120E5 | D25TCIE2 | 4F20TCIE5 | 4DW94-95E5 | YCD4N4S-110 | WP2.3Q110E50 |
| Engine Displacement | 1995 - 3857 (ml) |
| Engine Max Power | 64 - 96 (kw) |
