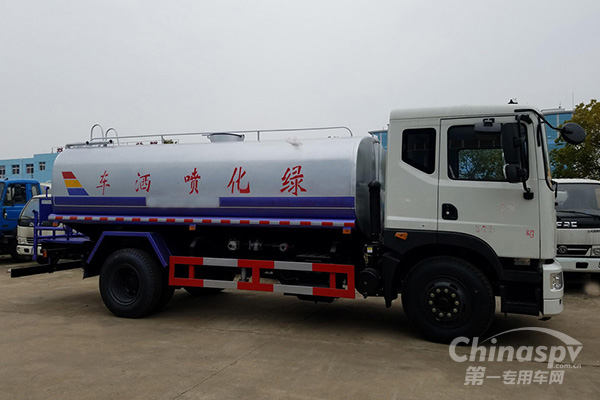

| Model | CLW5163GPSD5 |
| Gross Weight | 16000(kg) |
| Volume | 12.46(cubic meter) |
| Rated Load | 9505,9570(Kg) |
| Curb Weight | 6300(kg) |
| Dimensions | 8200,8400,8600,7650,7850×2470×3160(mm) |
| Approaching/Departuring Angle | 26/13(°) |
| Front/Rear Overhang | 1250/2450,1450/2450(mm) |
| Number of Axles | 2 |
| Wheelbase | 3650,3800,3950,4200,4500,4700,5150,5400,5700,3400,5100(mm) |
| Axle Load | 5600/10400(kg) |
| Max Speed | 90(km/h) |
| Chassis type | EQ1160GZ5DJ |
| Number of Tires | 6 |
| Number of Leaf Spring | 9/10+8,8/10+7,8/10+8 |
| Tire | 9.00R20 16PR,10R22.5 16PR,10.00-20 16PR,10.00R20 16PR, 10.00R20 18PR |
| Front Wheel Track | 1940,1900,1810,1965(mm) |
| Rear Wheel Track | 1860,1800,1800,1860(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | YC4EG160-50 | ISD18550 | YC6JA180-50 | ISB17050 | ISB18050 | ISB19050 | YC4E160-56 | YC4FA130-50 |
| Engine Displacement | 2982 - 6870(ml) |
| Engine Max Power | 95 - 140(kw) |
