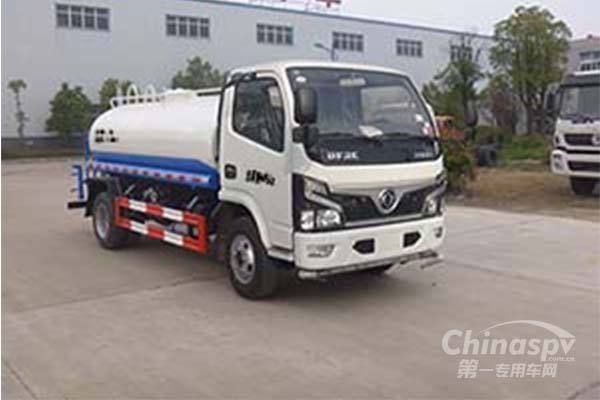

| Model | HCQ5045GPSE6 |
| Gross Weight | 4495(kg) |
| Volume | 1.57(cubic meter) |
| Rated Load | 1496(Kg) |
| Curb Weight | 2869(kg) |
| Dimensions | 5995×1990×2300 (mm) |
| Approaching/Departuring Angle | 25/13(°) |
| Front/Rear Overhang | 1055/1632(mm) |
| Number of Axles | 2 |
| Wheelbase | 2700,2950,3308(mm) |
| Axle Load | 1600/2895(kg) |
| Max Speed | 110(km/h) |
| Chassis type | EQ1045SJ3CDF |
| Number of Tires | 6 |
| Number of Leaf Spring | 6/6+5,3/3+3,2/3+2,5/7+3,5/4+3,6/4+3,6/5+2,6/3+3 |
| Tire | 6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR |
| Front Wheel Track | 1525,1519,1472(mm) |
| Rear Wheel Track | 1498,1516,1586,1458,1650(mm) |
| Chassis Discharge Standard | GB17691-2018 National VI Emission Standards |
| Fuel Type | Diesel |
| Engine Model | D20TCIF1, Q23-115E60, Q28-130E60, CA4DB1-13E6, D20TCIF11, YCY24140-60, CA4DB1-11E6, CY4BK161, ZD30D16-6N, H20-120E60, CY4BK461, M9T-600 |
| Engine Displacement | 1999 - 3856(ml) |
| Engine Max Power | 81 - 120(kw) |
