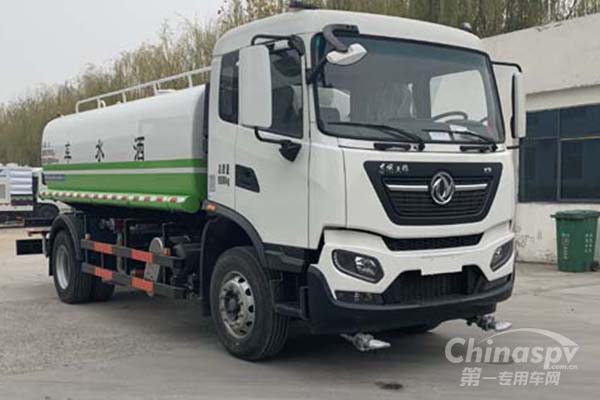

| Model | SQZ5180GSSG6 |
| Gross Weight | 18000(kg) |
| Volume | 10(cubic meter) |
| Rated Load | 9555(Kg) |
| Curb Weight | 8250(kg) |
| Dimensions | 8550×2500×2950 (mm) |
| Approaching/Departuring Angle | 9/11(°) |
| Front/Rear Overhang | 1500/2550(mm) |
| Number of Axles | 2 |
| Wheelbase | 3800,3950,4200,4500,4700,5000,5300,5800,5600(mm) |
| Axle Load | 6500/11500(kg) |
| Max Speed | 89(km/h) |
| Chassis type | DFH1180EX8 |
| Number of Tires | 6 |
| Number of Leaf Spring | 7/9+6,8/10+8,8/9+6,11/10+8 |
| Tire | 10.00R20 18PR,275/80R22.5 18PR |
| Front Wheel Track | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860(mm) |
| Rear Wheel Track | 1820,1860,1800(mm) |
| Chassis Discharge Standard | GB3847-2005, GB17691-2018 National VI Emission Standards |
| Fuel Type | Diesel |
| Engine Model | D4.5NS6B190, D6.7NS6B230，B6.2NS6B210，D4.0NS6B185，DDi50E220-60, B6.2NS6B230，DDi50E190-60，D4.0NS6B195 |
| Engine Displacement | 4000 - 6700(ml) |
| Engine Max Power | 136 - 169(kw) |
