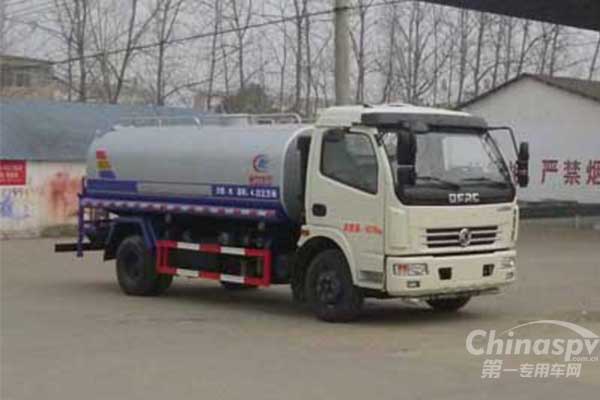

| Model | CLW5080GSSD5 |
| Gross Weight | 8275(kg) |
| Volume | 4.22(cubic meter) |
| Rated Load | 4020(Kg) |
| Curb Weight | 4060(kg) |
| Dimensions | 6780,6800×2130×2500(mm) |
| Approaching/Departuring Angle | 20/13(°) |
| Front/Rear Overhang | 1130/1850,1150/1850(mm) |
| Number of Axles | 2 |
| Wheelbase | 3800,3308,4100(mm) |
| Axle Load | 3300/4975(kg) |
| Max Speed | 103(km/h) |
| Chassis type | EQ1080SJ8BDC |
| Number of Tires | 6 |
| Number of Leaf Spring | 8/10+7 |
| Tire | 7.50R16,7.50R16,245/70R19.5 12PR |
| Front Wheel Track | 1740(mm) |
| Rear Wheel Track | 1610,1586,1800(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | CY4SK251 | YC4FA130-50 | ISF3.8s5141 | ZD30D15-5N | 4DX23-140E5 | YN38CRE1 | YC4Y22-15050 | CY4SK251 | YC4FA130-50 | ISF3.8s5141 | ZD30D15-5N | 4DX23-140E5 | YN38CRE1 | YC4Y22-15050 | YC4S150-50 |
| Engine Displacement | 2169 - 3857(ml) |
| Engine Max Power | 95 - 115(kw) |
