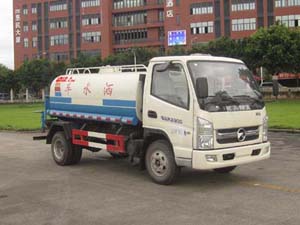

| Model | KMC5076GSSA33D5 |
| Gross Weight | 7480(kg) |
| Volume | 4.37(cubic meter) |
| Rated Load | 4165,4230(Kg) |
| Curb Weight | 3120(kg) |
| Dimensions | 5900×2020×2250(mm) |
| Approaching/Departuring Angle | 25/18(°) |
| Front/Rear Overhang | 1150/1450(mm) |
| Number of Axles | 2 |
| Wheelbase | 3300(mm) |
| Axle Load | 3000/5280(kg) |
| Max Speed | 90 (km/h) |
| Chassis type | KMC1086A33D5 |
| Number of Tires | 6 |
| Number of Leaf Spring | 7/9+5 |
| Tire | 7.50-16LT,7.50R16LT |
| Front Wheel Track | 1540,1600,1680(mm) |
| Rear Wheel Track | 1550,1600(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | YN33CRE1, SD4D25R-70, 4DW93-84E5, WP2.3Q110E50 |
| Engine Displacement | 2290 - 3298(ml) |
| Engine Max Power | 64 - 85(kw) |
