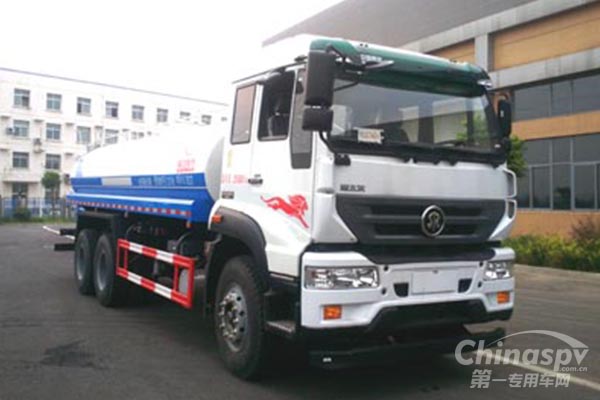

| Model | CLW5250GPSZ5 |
| Gross Weight | 25000(kg) |
| Volume | 16.79(cubic meter) |
| Rated Load | 13500,13435(Kg) |
| Curb Weight | 11370(kg) |
| Dimensions | 9650×2500×3000(mm) |
| Approaching/Departuring Angle | 13/11(°) |
| Front/Rear Overhang | 1320/2630(mm) |
| Number of Axles | 3 |
| Wheelbase | 4350+1350,4550+1350,5700+1350,3800+1350(mm) |
| Axle Load | 7000/18000 (kg) (two axles) |
| Max Speed | 101 (km/h) |
| Chassis type | ZZ1251N464GE1 |
| Number of Tires | 10 |
| Number of Leaf Spring | 3/5,3/10,11/10,11/12,3/-,11/-,3/4 |
| Tire | 11.00-20,11.00R20,12R22.5,295/80R22.5 |
| Front Wheel Track | 2035(mm) |
| Rear Wheel Track | 1850/1850(mm) |
| Chassis Discharge Standard | GB17691-2005 National V Emission Standards, GB3847-2005 |
| Fuel Type | Diesel |
| Engine Model | MC07.28-50 | MC07.31-50 | D10.28-50 | D10.31-50 | MC07.24-50 | MC07.28-52 | MC07.31-52 | MC07.34-50 | MC07.34-52 |
| Engine Displacement | 6870 - 9726(ml) |
| Engine Max Power | 176 - 248(kw) |
