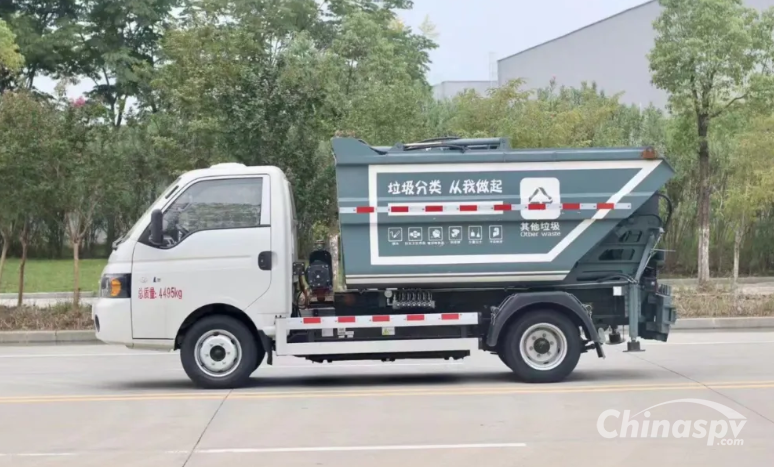

JAC pure electric self-loading garbage truck

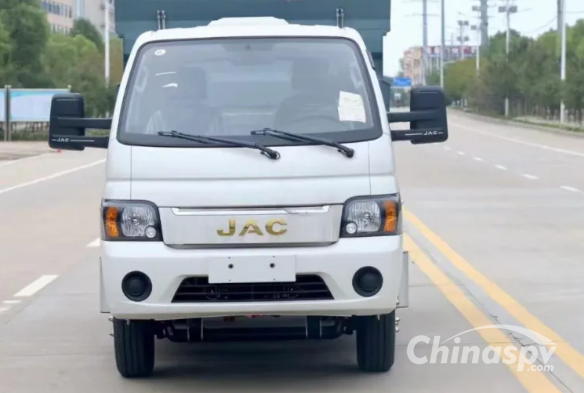

Chassis configuration: JAC Shuailing I3 pure electric chassis, 2850mm wheelbase, Ningde 55.7kwh lithium iron phosphate battery, Shandong Petlai permanent magnet synchronous motor, rated power/torque/speed (Kw/N.m/r/min): 50/130/3673, peak power/torque/speed (Kw/N.m/r/min): 110/330/12000, rated voltage: 350V, Shenzhen INVT controller, MT automatic transmission, front disc and rear drum axle, 4+6 leaf springs, with ABS, automatic adjustment arm, shoe wear alarm, central locking, electric doors and windows, with air conditioning and heater.

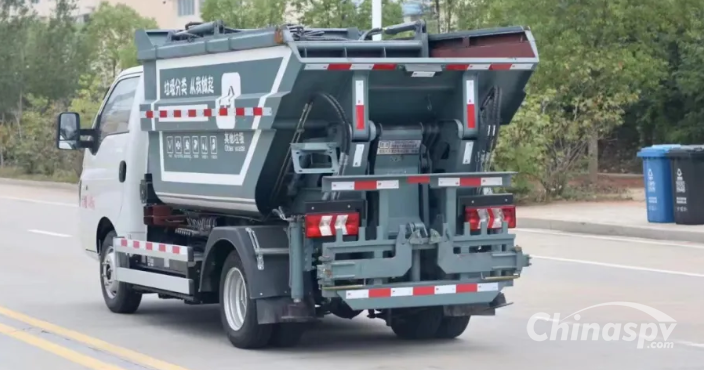

Upper configuration: effective volume of the box is 4 cubic meters, the box shape is curved, the box material bottom is 4 and the sides are 4, the scraper mechanism loading cycle time is ≤35s, the barrel turning mechanism cycle time is ≤20s, the unloading working cycle time is ≤55s, the discharge port height is 1150mm, the unloading working height is 4250mm, the barrel turning mechanism has 2 120L/240L and 1 660L trash cans.
