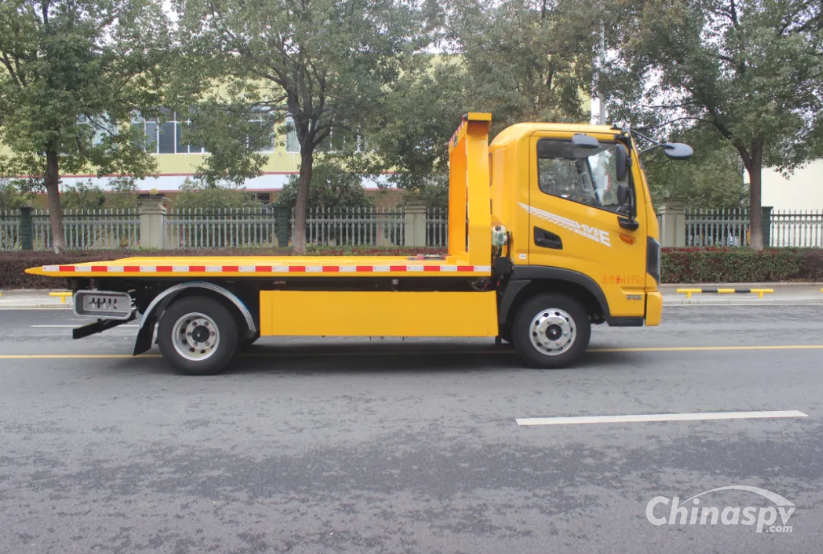

Dongfeng Huashen pure electric blue plate tow truck

Pure electric blue plate tow truck
Chassis model: DFD1040TLEVJ1
Wheelbase: 3300 wheelbase 153 horsepower
Speed: 90KM/h Endurance: 200 kilometers. Vehicle load status. The city has a uniform speed of about 80 yards

Chassis configuration: Dongfeng Huashen electric chassis, all-in-one motor control, CATL 77 kWh, electronic paddle gear, straight-through beam, front axle 2.2 tons/rear axle 3.5 tons, 650 vacuum steel tire, aluminum alloy steel rim, LCD instrument panel, with central door lock, electric doors and windows, original air conditioning, etc.
Upper load configuration: 2 tons upper load, 4 tons winch, 21 meters steel wire rope, plate length 5.3 meters wide 2.3 meters, double-sided linkage operation, the flat plate adopts 5MM thick patterned integrated plate, one-to-two type, 3 tons rear support arm, double-sided linkage operation device, 2 rear working lights, 1 40KN hydraulic winch, tool box, equipped with 2 trolleys, 1 pair of L-shaped tire racks, 4 binding straps, color: according to the chassis color.
