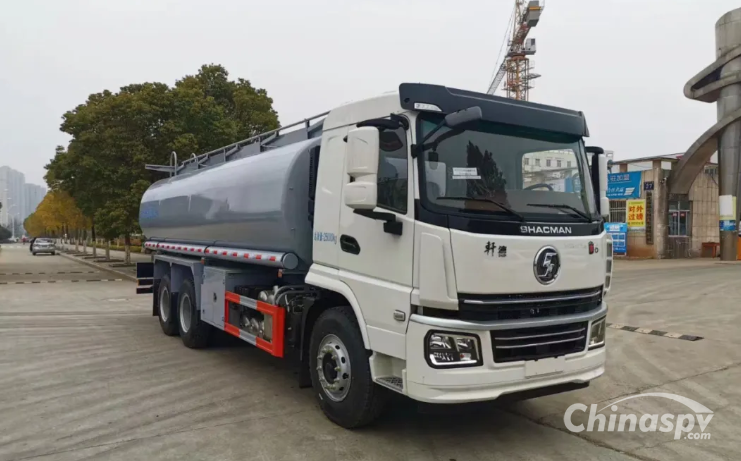

SHACMAN Xuande rear double-axle fluid supply truck

Chassis configuration: Wing 6 semi-high roof/222, airbag seats, electric windows, constant temperature air conditioning, central locking, multi-function steering wheel, sunshade, multimedia screen + reversing image, four-point full suspension, color LCD screen combination Instruments, illuminated logo, Yuchai 270 horsepower, wheelbase 4375+1350, Fast 9-speed (with power take-off) frame: 280/8+6 double-layer, front axle 5T, rear axle 13T+13T, fuel tank 270L aluminum, tire 11.00R20/18PR;
Top configuration: Made in strict accordance with the announced size and appearance style, the tank thickness is 5mm made of carbon steel, square and round tank, tank volume 24.5 cubic meters, two ordinary tank mouths, folding guardrails, hydraulic head, pump inlet and outlet installed on the right 80-60 ordinary Shandong pump on the side, double-door box on both sides, iron barrel, anti-slip net inside the perimeter, a tool box, and a 100 butterfly valve at the end for self-flow. All tank heads are made by automatic welding process.

Views:2791
