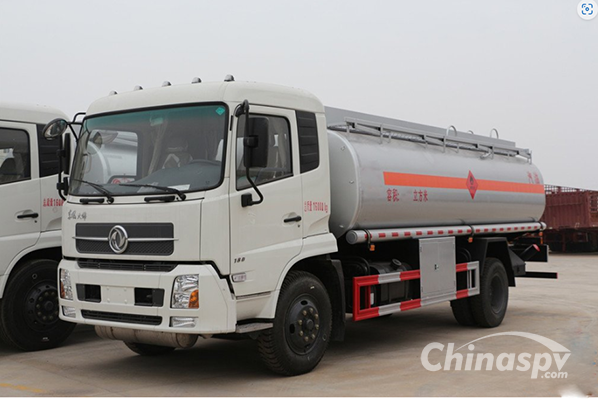

How about Dongfeng Tianjin 15 cubic meters fuel truck?

Total mass (Kg): 18000

Curb weight: 7805

Rated load mass (Kg): 10000

Number of passengers allowed in the cab (person): 3.2

Tank volume: 15 cubic meters

Transport medium: gasoline

Engine: Cummins B6.2NS6B210

Overall dimensions: 8500×2550×3350

Tank size: 5800×2250×1450

Standard top equipment: Q235 carbon steel plate, national standard thickness, single warehouse, with overflow valve pump, a European standard tank mouth, a seabed valve, with voice prompt alarm device, with a set of bottom oil system, bottom oil system installation On the right side, reserve the space for the oil dispenser and reel. Optional parts: flow meter, oil dispenser and reel.

Highlights of the bodywork process:

·Flaw detection process: All main welds of the tank are strictly operated in accordance with the flaw detection process (single-sided welding and double-sided forming: patchwork welding-copper groove, circumferential seam welding-ceramic liner process), and in accordance with the GB18564.1-2019 standard flaw detection (X-ray inspection) is carried out according to the flaw detection ratio.



·Sandblasting process: The surface of the tank is sandblasted to remove dust, dirt and rust, and enhances the thickness and adhesion of the paint. The baking process realizes pre-assembly + painting + final assembly. There are no dead ends or omissions in the entire vehicle paint.

Chassis configuration: Cummins: Chassis model: DFH1180EX9, Dongfeng Tianjin National VI, Cummins B6.2NS6B210 engine, 8JS85E-C gearbox, 4700 wheelbase, 275/80R22.5 18PR tires, 250×80×7+4 frame, 160L fuel tank, D530 semi-cab, with air conditioning, electric glass, central locking (without remote control key), front disk, ECU speed limiter, front exhaust pipe, hazard warning light, recorder, rear axle suspension, with Lane departure warning, anti-collision warning, tire pressure monitoring.
